CNC turning
Connect diameters, bores and threads to their mating interfaces. Include cross-holes, flats and slots so secondary operations and final inspection are covered in the same review.
Review my cnc turning part
Explore component examples
Company photograph · supplier assessment
TURNED PARTS / THREE INTERFACE DECISIONS
Start with the surfaces that locate, guide or fasten the mating part. These references connect visible geometry to the drawing decisions needed for quotation and sample review.
01Stainless steel main shaft
Identify bearing seats, shoulders and grooves individually. State the datum scheme and any required relationship between functional diameters.
Agree how each specified fit and geometric relationship will be checked. Protect the accepted locating surfaces during packing; retain the drawing revision with the sample record.
02Brass pipe sleeves
A bore and outside diameter serve different mating interfaces. Specify wall section, seating face and whether acceptance applies before or after assembly.
If the sleeve is pressed into a housing, provide the mating geometry and the required assembled clearance. Agree a separate assembly check where a free-state measurement cannot establish function.
03Stainless steel threaded coupling
Define the thread designation, full-thread length and shoulder seat. Include cross-hole edge access and the finish applied to the threaded surfaces.
Align the gauge basis, finish stage and required record before sampling. A thread-gauge result does not establish sealing, torque or pressure performance.
REAL COMPONENT EXAMPLES
AI-assisted studio viewA stainless steel shaft with diameter changes, shoulders and circumferential grooves. Define the mating fits and the surfaces that control alignment.
Explore component

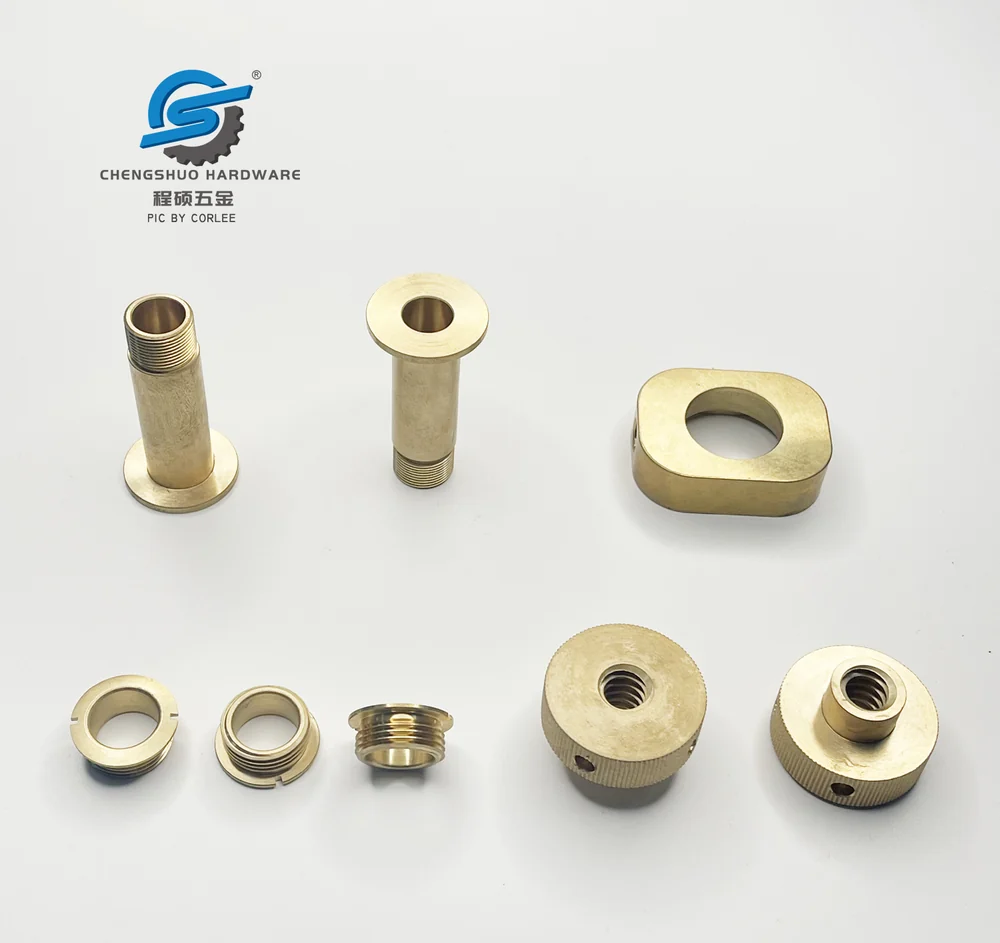

AI-assisted studio viewBrass sleeve forms with internal bores and flanged sections. Use the mating bore, outside diameter and shoulder position to define your own version.
Explore component
AI-assisted studio viewA stainless steel coupling with an extended threaded section and a larger body. Specify the thread standard, engagement and any cross-hole requirements.
Explore component
AI-assisted studio viewA hollow threaded stem reference for vacuum gripper positioning. Review adjustment travel, mounting threads and the internal passage as one interface before releasing your drawing.
Explore componentGeometry references from the Chengshuo portfolio. Each card identifies its published process; the manufacturing route for your own drawing is reviewed individually.
Aluminum / PROJECT PLANNING
Specify the exact alloy and temper. A cosmetic finish, thread fit and thin wall can introduce different requirements into the same component.
Anodizing or another treatment must be specified before final dimensions and acceptance are agreed.
Explore aluminum examples
Stainless steel / PROJECT PLANNING
“Stainless steel” alone is not a complete material specification. Describe the required grade, documentation and exposure conditions so the manufacturing review starts from the same assumptions.
Corrosion performance depends on grade, finish and environment. Discuss application requirements rather than relying on appearance.
Explore stainless steel examplesBrass / PROJECT PLANNING
For connectors, sleeves and turned details, specify the brass alloy alongside the thread, sealing and finish requirements. Distinguish the visible shape from its functional acceptance criteria.
State any material-composition or regulatory requirement in your enquiry; do not infer it from a generic brass description.
Explore brass examples
Copper / PROJECT PLANNING
If a copper part has an electrical or thermal role, identify the relevant alloy and the surfaces that matter. Include any required coating or contact condition in the drawing package.
Electrical or thermal performance needs application-specific definition and verification.
Explore copper examples
Steel / PROJECT PLANNING
Specify grade and material condition, then state any heat treatment and finishing requirement. The sequence of operations should be reviewed together with the dimensions that control assembly.
Do not assume a heat treatment or hardness from a photograph. Include it as an explicit requirement.
Discuss steel requirementsYOUR DRAWING DEFINES THE ROUTE
Share it with the drawing, quantities and any inspection or compliance requirements.
Discuss the materialPlastic / PROJECT PLANNING
A polymer name, grade and environment help define how a plastic component should be reviewed. Include fit, wall features and any temperature or media exposure relevant to the application.
Polymer families are not interchangeable. The exact material and part requirements need project review.
Explore plastic examples
| Finish discussion | What it concerns | What to specify |
|---|---|---|
| As-machined | Visible cutting texture and edge condition | Define surface roughness where function requires it; specify burr removal and edge breaks. |
| Anodizing | Aluminum appearance and surface treatment | State type, color/reference sample, masking and which dimensions apply after treatment. |
| Passivation | Specified stainless-steel surface treatment | State the applicable process requirement, cleanliness and required documentation. |
| Plating | A specified deposited coating | Define coating system, thickness, substrate, masking and final functional dimensions. |
| Blasting / brushing / polishing | Specified texture or visual surface | Identify treated faces, direction or appearance standard, and features that must be protected. |
Planning options, not a blanket process or performance commitment. Availability and the treatment route are confirmed for each drawing and material.
QUALITY & ACCEPTANCE
Capability cannot be established from a generic tolerance headline. Share the geometry, material, specified limits and inspection method for your actual component.
Define my sample acceptanceExplain the mating part and the dimensions that control assembly.
Define measurement methods, sample plan and any records required.
Confirm the approved revision and review changes before a new run.
A dimensioned drawing with revision, material and finish is the starting point. A STEP model can help communicate geometry. Include quantities and the critical acceptance requirements.
No. A photo illustrates the part form. Feasibility must be reviewed against the actual geometry, material, dimension, tolerance and inspection method.
Include the requested sample quantity and the checks needed for approval. Sample scope and the intended production order are reviewed together.
The quotation confirms the reviewed scope, material, quantity, inspection requirements, price and schedule. Website examples do not constitute an offer or an accepted production order.
FROM EXAMPLE TO YOUR REQUIREMENT
Use an example to explain your idea.
Your own drawing defines the final specification.
FROM PROCESS TO REQUIREMENTS
See the workshop context, compare relevant component geometries and define how your samples will be checked.
Send the current drawing with quantities and critical requirements. The review is the starting point for agreeing scope, quotation and sample approval.
Request a drawing reviewSEE THE PROCESS IN MOTION
Explore Chengshuo’s published machining and workshop films. The project review connects your drawing to a proposed manufacturing and inspection route.
Machining close-ups followed by a dial-caliper check.
Which diameters, shoulders and thread features control your assembly?
Shafts, pins & mating fitsReview my part with this process A close look at material removal, followed by digital process planning.
Which diameters, shoulders and thread features control your assembly?
Shafts, pins & mating fitsReview my part with this process View the working area through the machine window, then follow the operator station.
Which diameters, shoulders and thread features control your assembly?
Shafts, pins & mating fitsReview my part with this process Every component starts with a specific requirement. We review its material, geometry and inspection needs before confirming the machining route.
Explore process filmsBefore releasing a turned part
Connect the shaft, thread and order quantity to the drawing requirements that affect assembly and quotation.
Review the key, shaft slot and hub as one mating interface.
Separate usable full thread, screw projection and bottom clearance.
Compare sample and repeat quantities under the same inspection and finish scope.
