Make the connection.
Connectors, couplings and fasteners with drawing-specific thread details.
Explore 15 examples
15 component examples

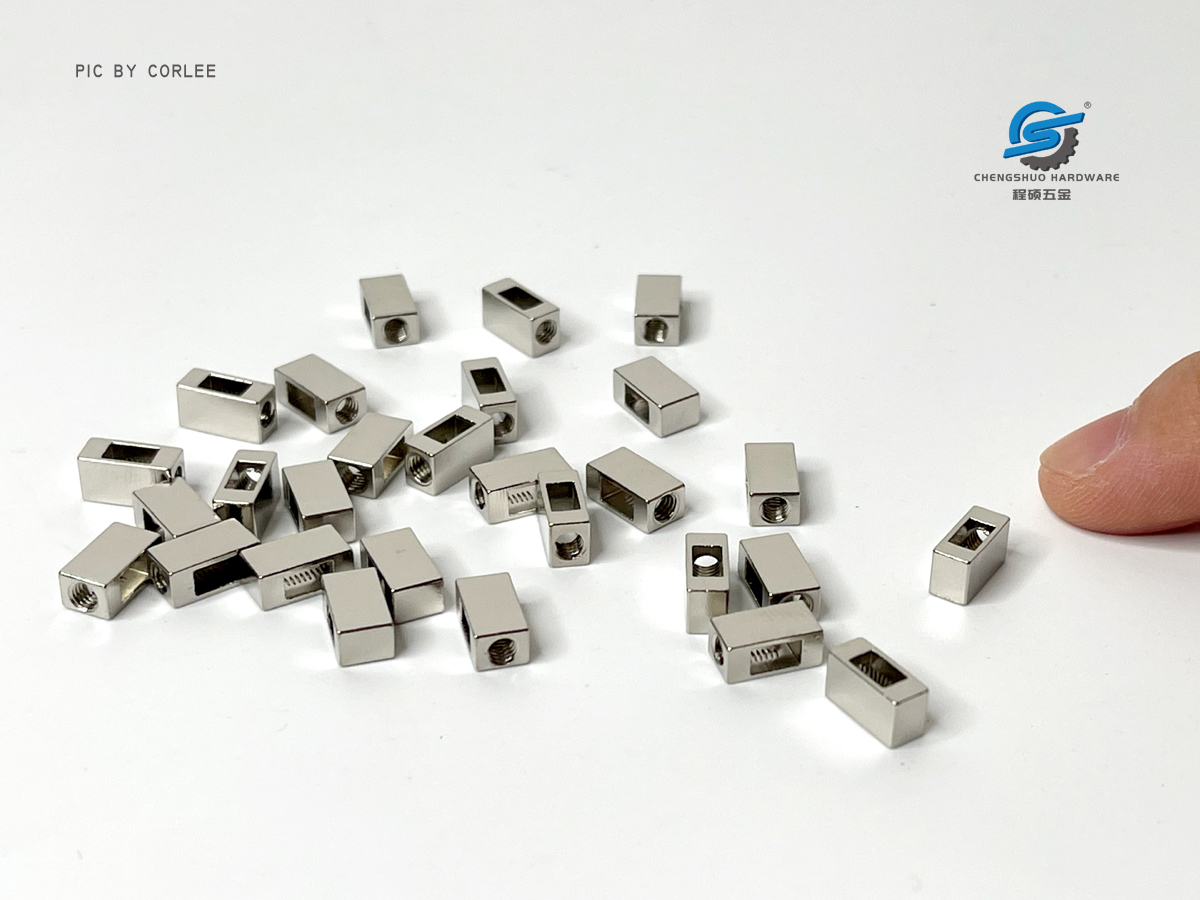

Original Chengshuo photographA rectangular brass terminal body with a wire opening and a threaded hole. The CS2023033 reference uses nickel plating. Start a custom enquiry with the conductor space, clamping arrangement and finished-part drawing so the mechanical interface and coating can be reviewed together.
AI-assisted studio viewA stainless steel joint with a cylindrical body, central bore and external grooves. Identify the contact surfaces and fit requirements for your assembly.
Explore component

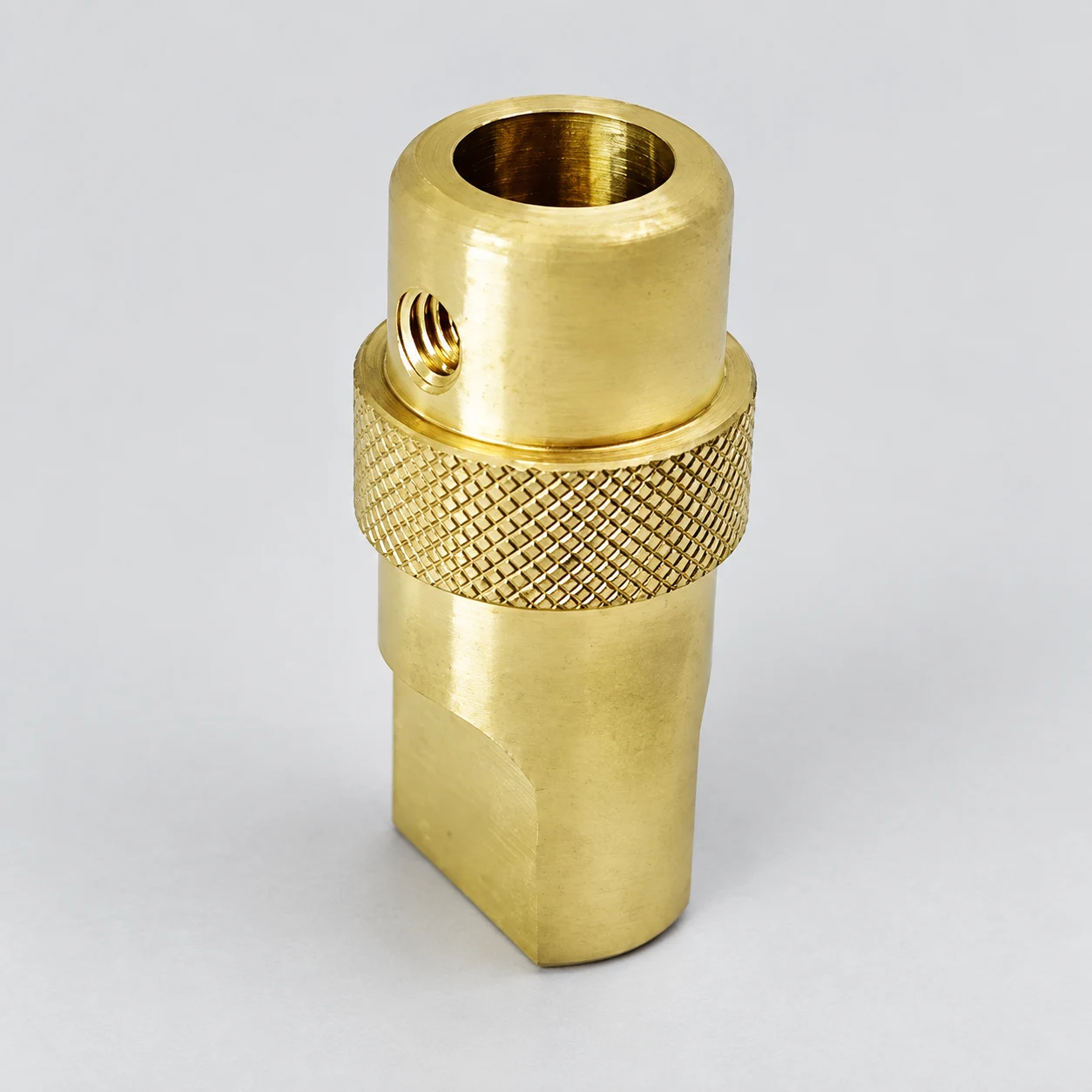

AI-assisted studio viewA brass valve-joint form with a bored body and textured collar. Thread, sealing and interface requirements should be defined in your drawing.
Explore component

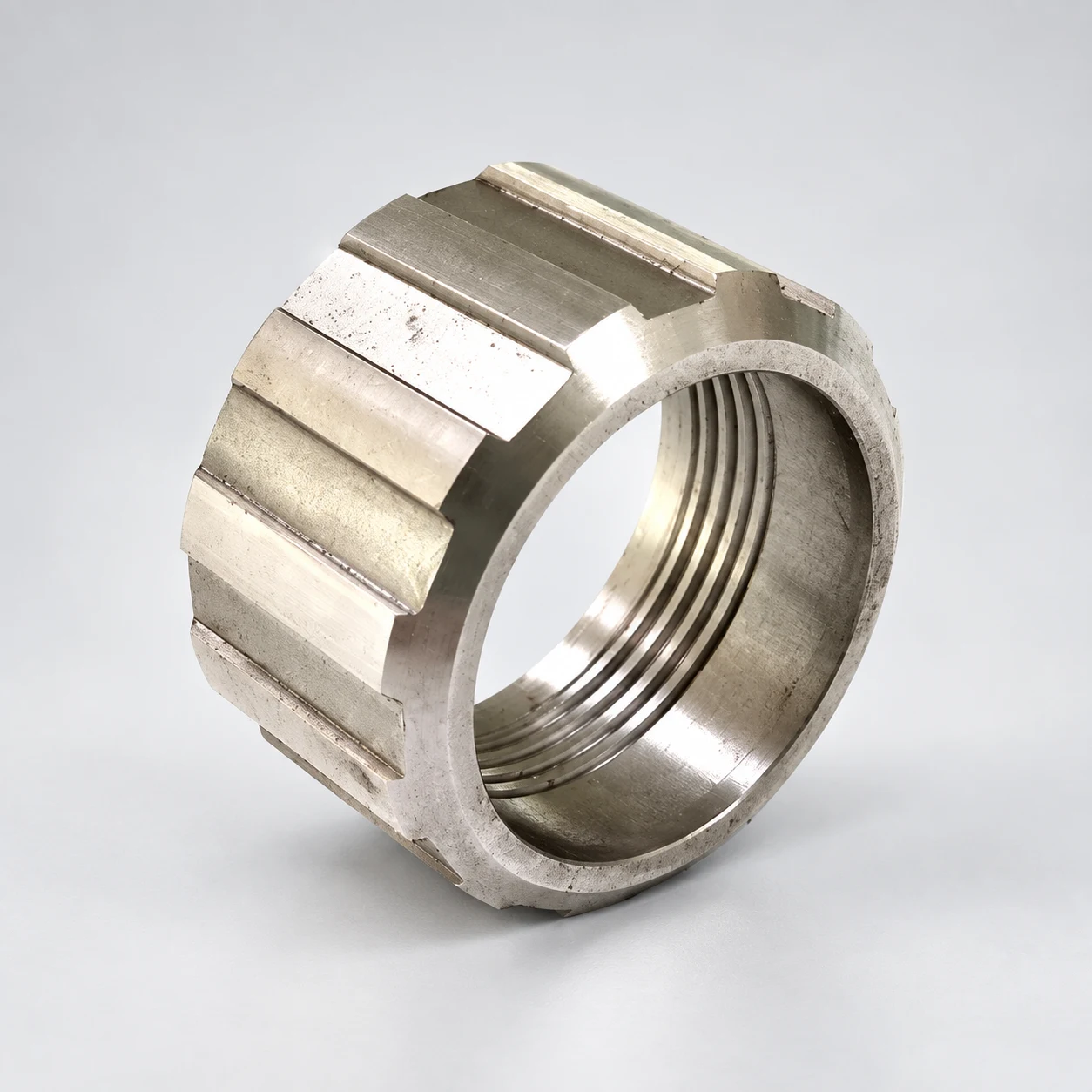

AI-assisted studio viewAn internally threaded lock nut with repeated outer recesses. Specify the thread standard, mating part and tool-access geometry for your version.
Explore component

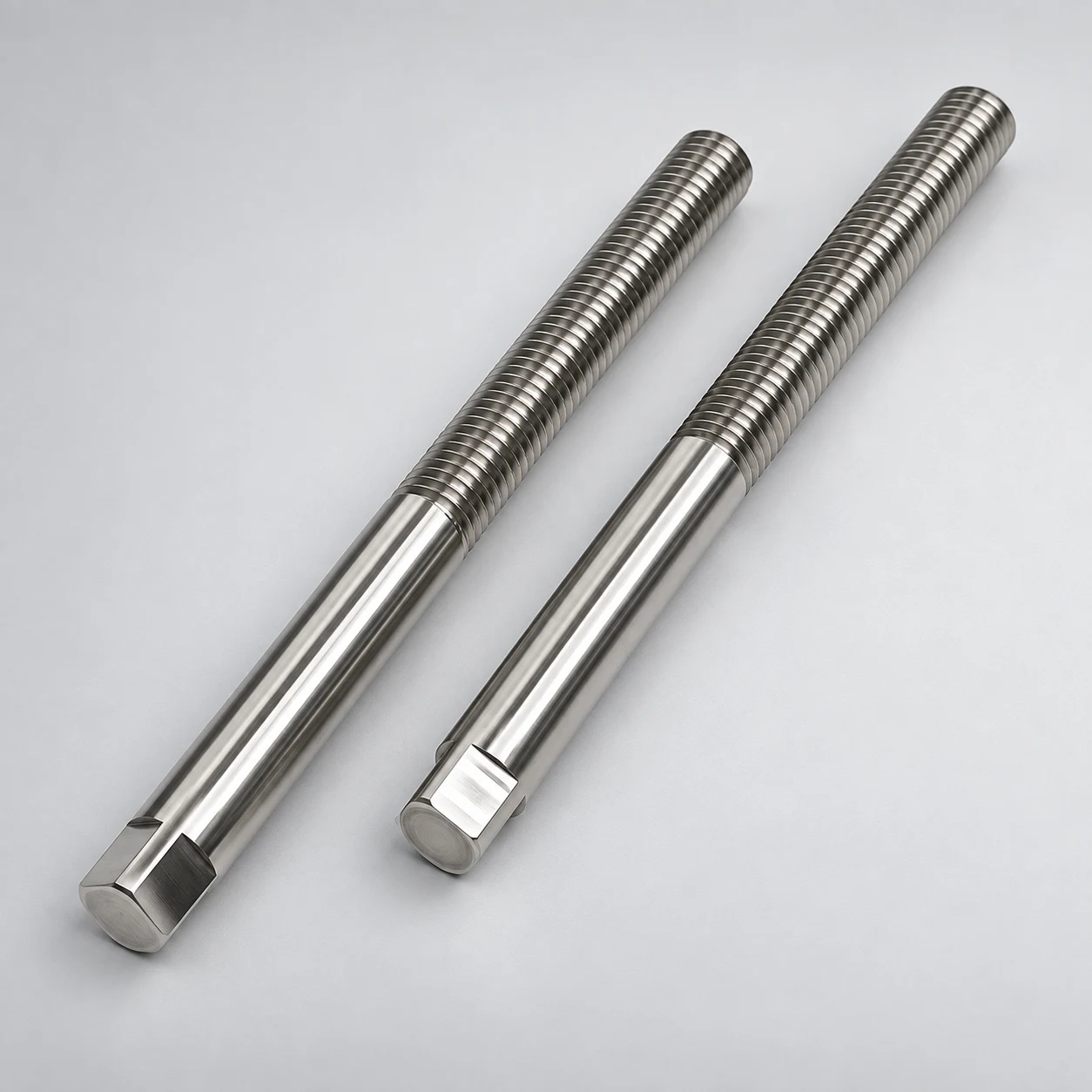

AI-assisted studio viewAn extended bolt with a long threaded section and a smooth shank. Define the thread, engagement length and head-access requirements for a similar fastener.
Explore component

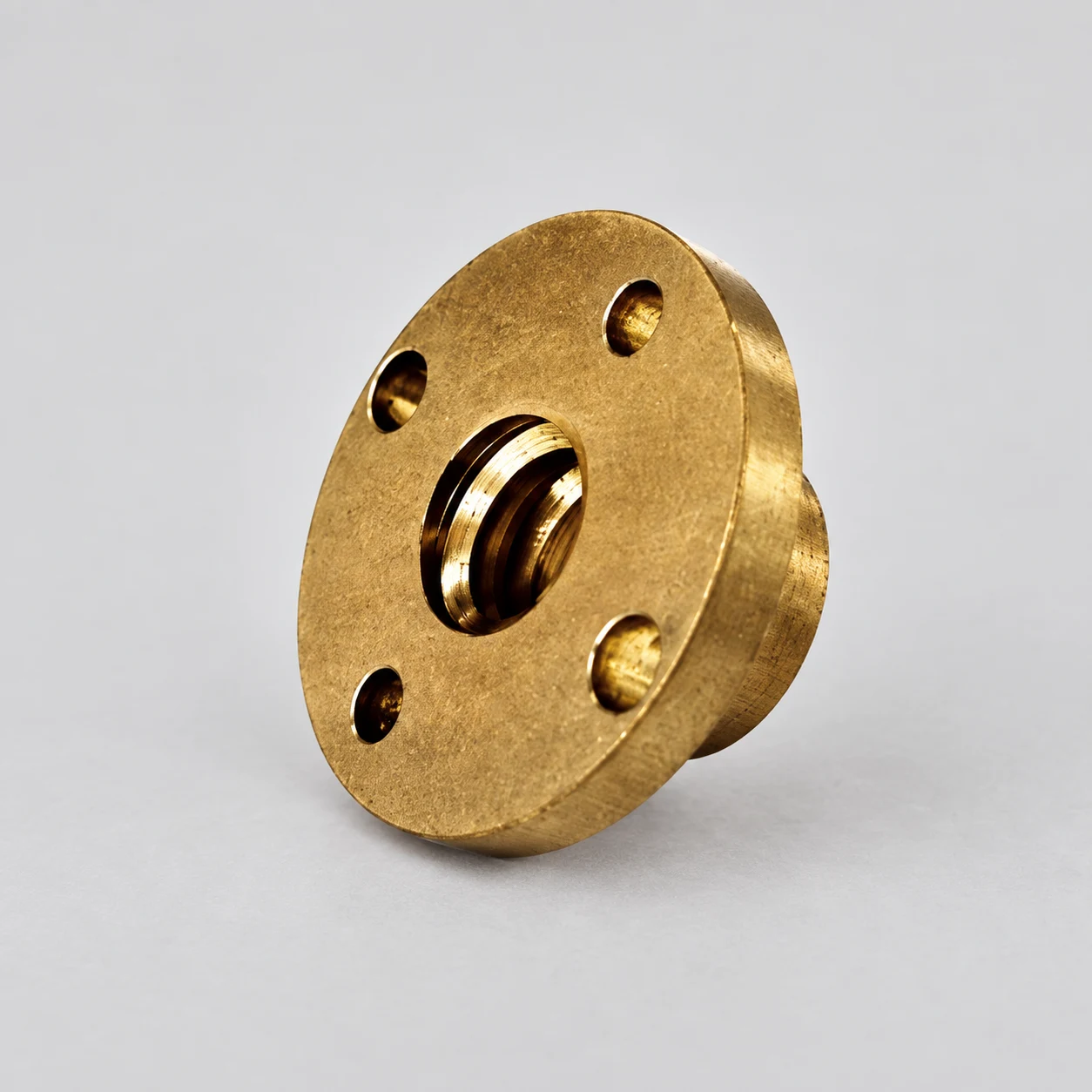

AI-assisted studio viewA brass flanged nut with a broad round face and a central opening. Review the mating interface and the relationship between the face and hole pattern.
Explore component

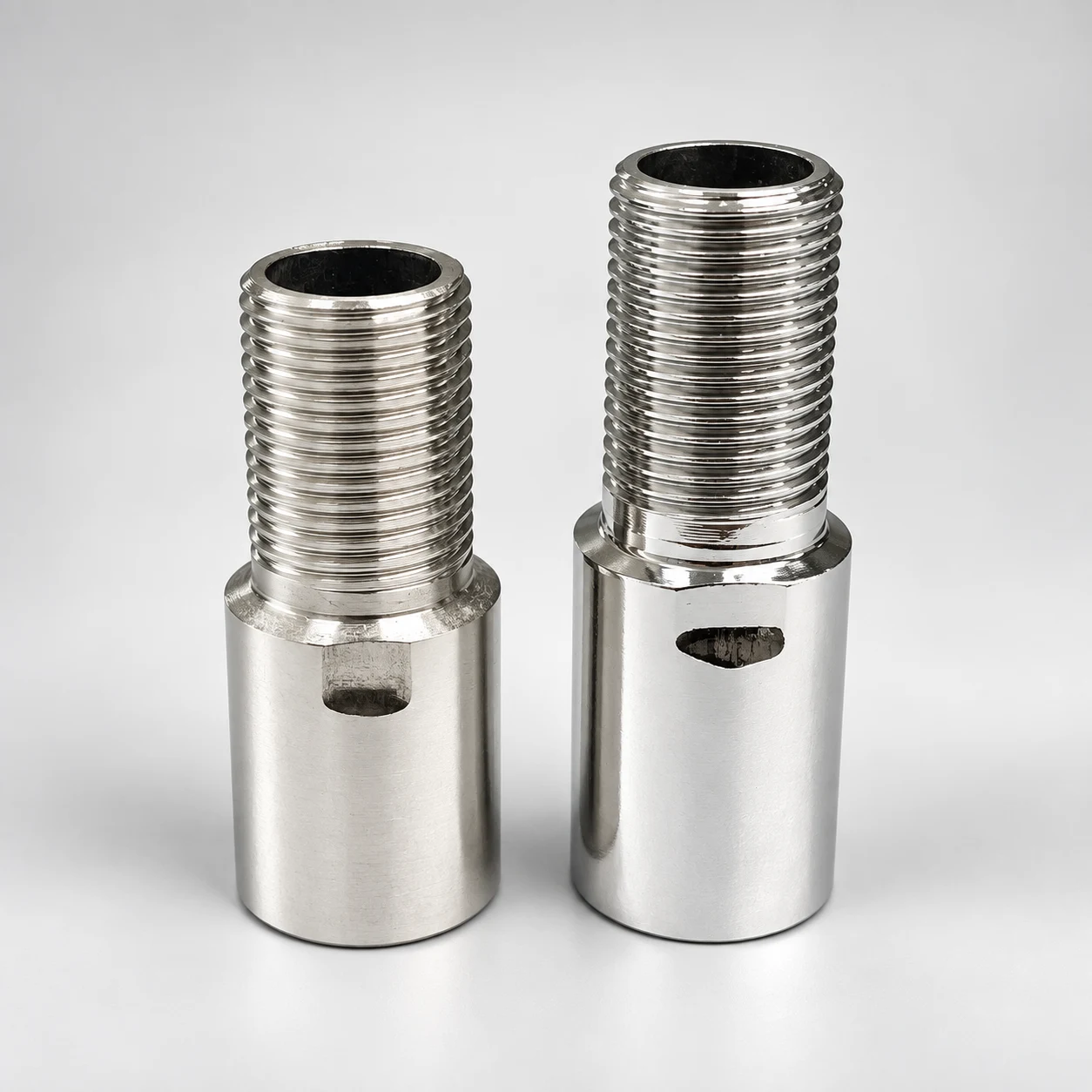

AI-assisted studio viewA stainless steel coupling with an extended threaded section and a larger body. Specify the thread standard, engagement and any cross-hole requirements.
Explore component

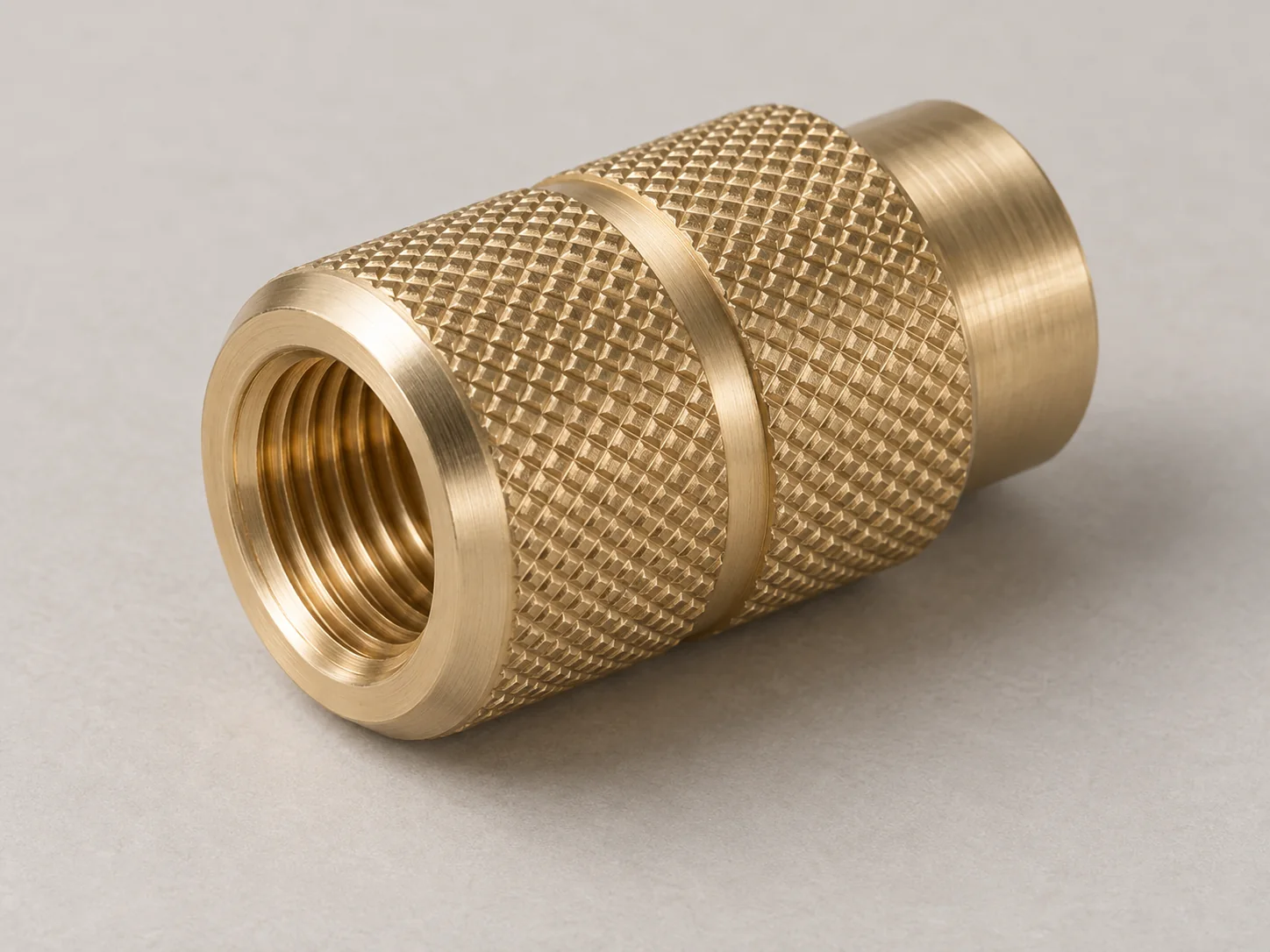

AI-generated engineering conceptAn internally threaded insert concept for press assembly: coordinate the knurled envelope, receiving hole and finished thread with the host component.
Explore component

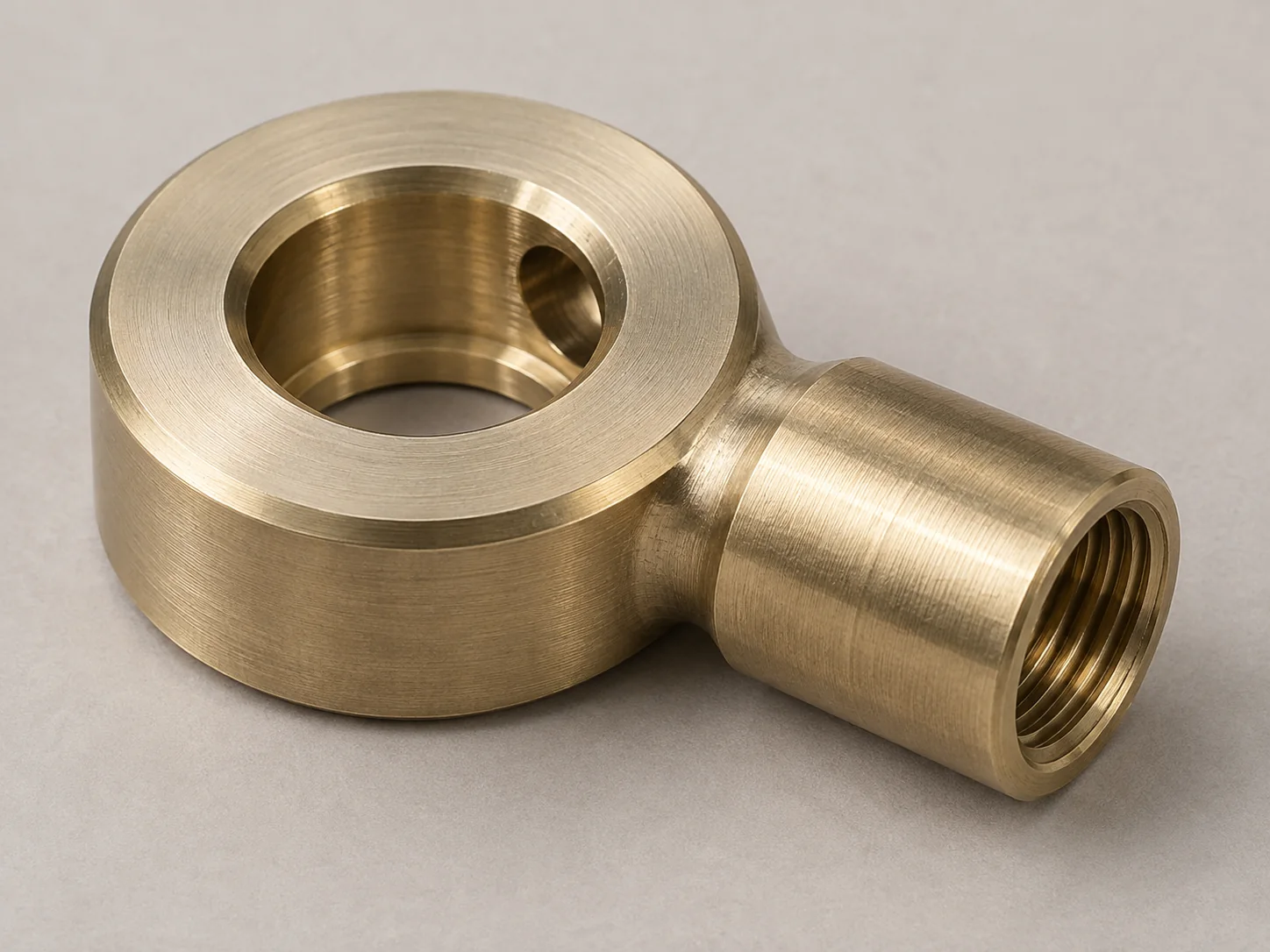

AI-generated engineering conceptAn eye-style fitting-body concept with a threaded side connection: define the bolt passage, sealing faces and internal flow intersection together.
Explore component

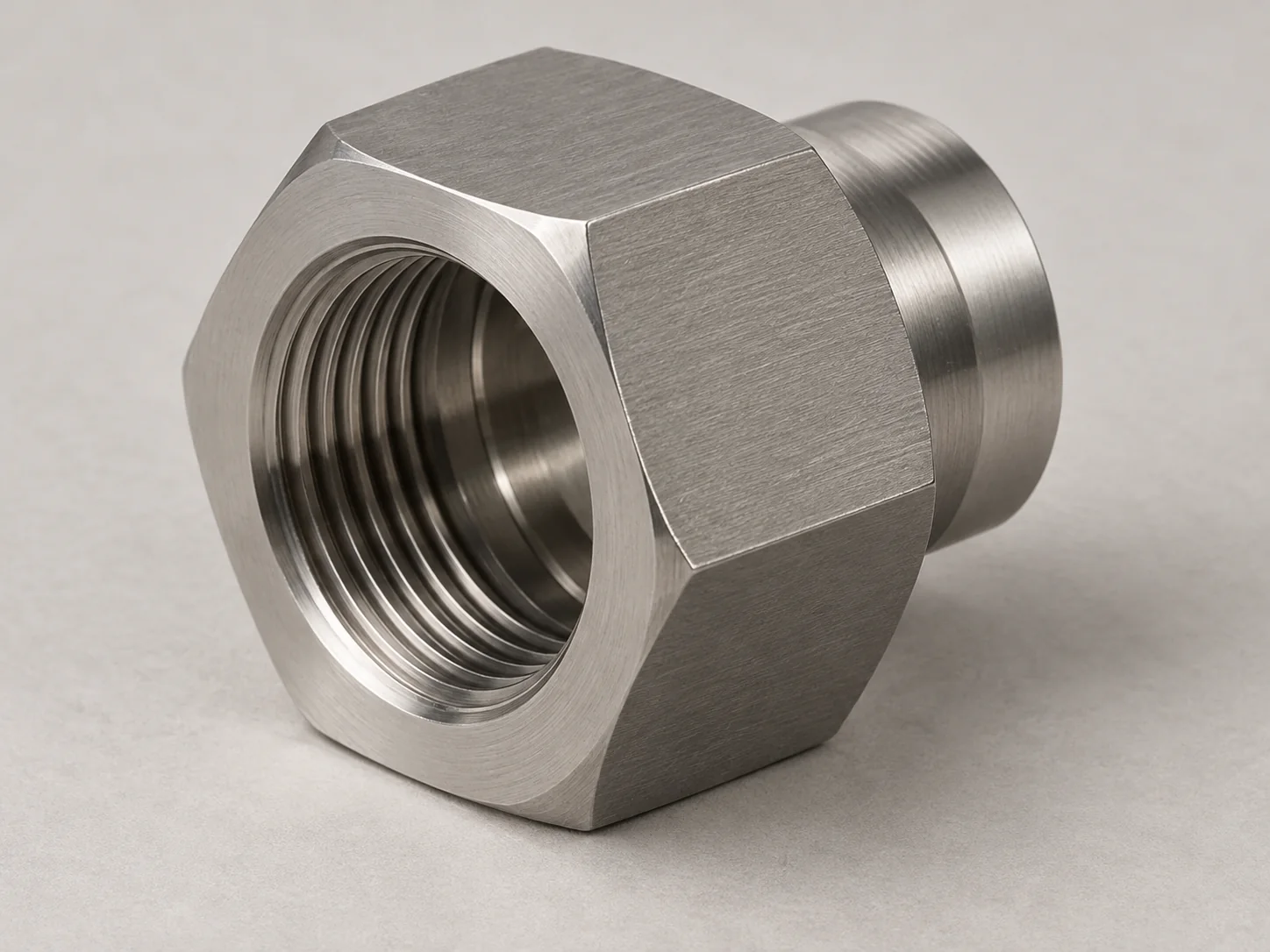

AI-generated engineering conceptA gland-retaining nut concept for a specified face-seal assembly: align the thread, retaining shoulder, gland clearance and wrench access.
Explore component

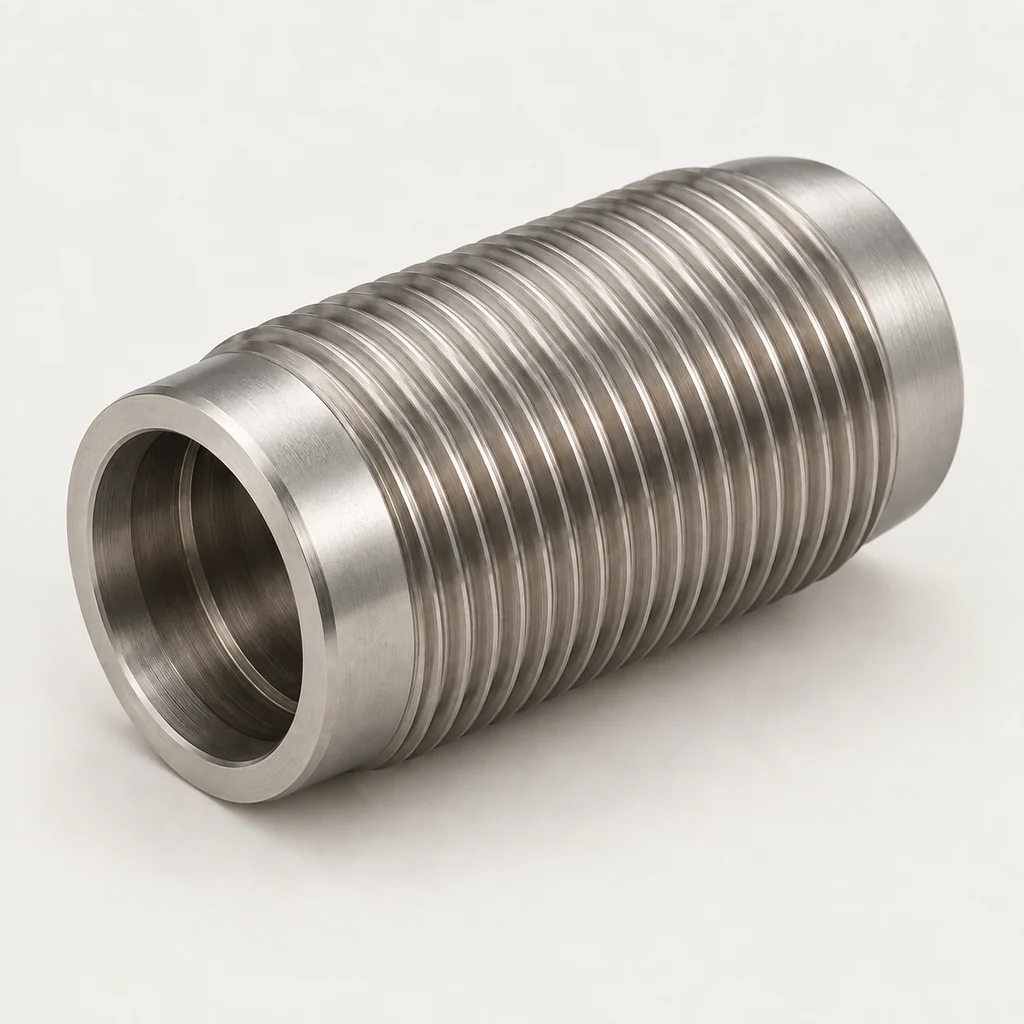

AI-generated engineering conceptA machined body concept for a spring-loaded locating mechanism. Review the mounting thread, internal cavity and front retaining geometry before specifying the complete assembly.
Explore component

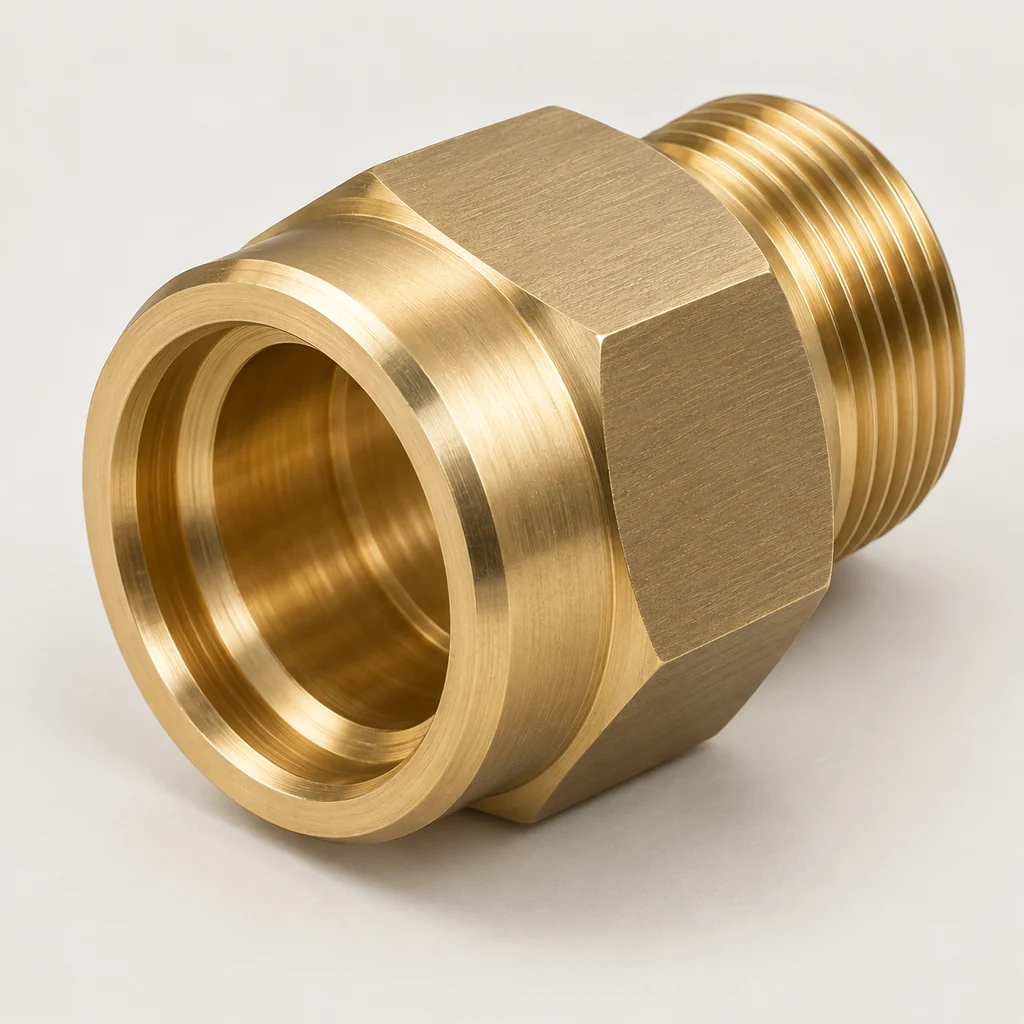

AI-generated engineering conceptA hollow metal body concept for a cable-entry assembly. Review the mounting thread, wrench flats and seal-support geometry together with the selected cable and compression parts.
Explore component

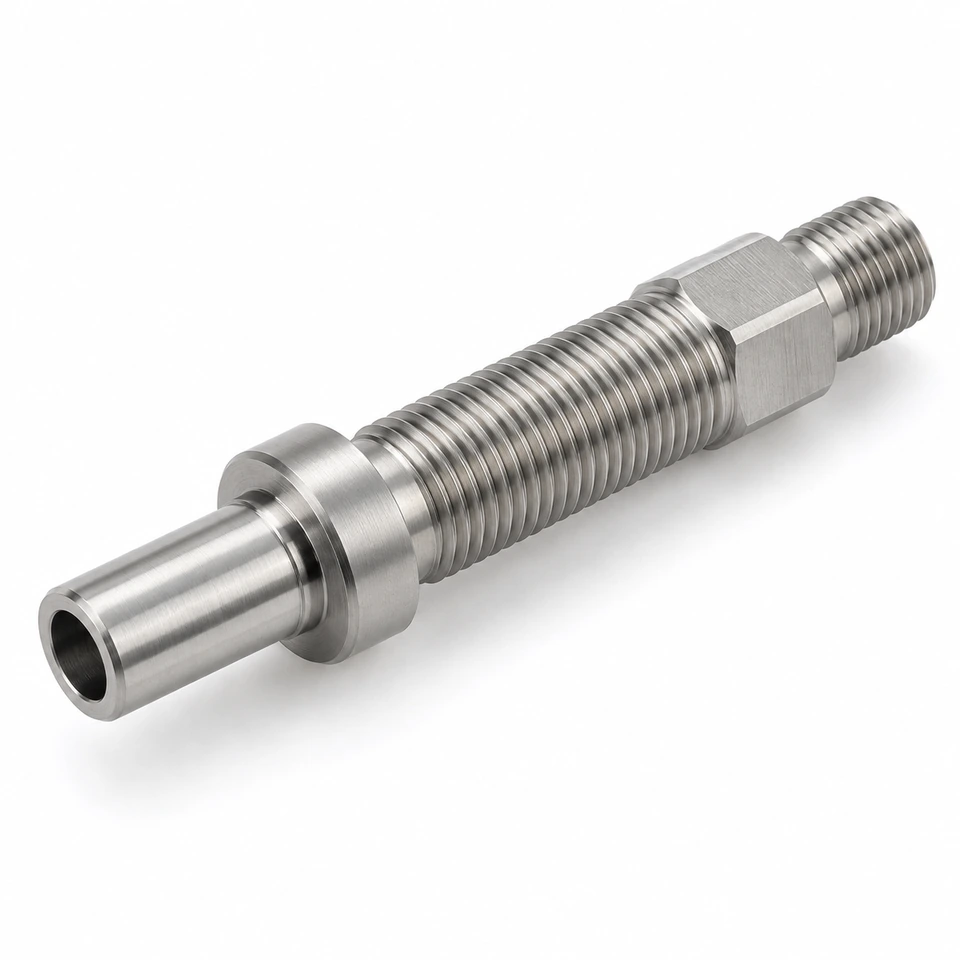

AI-assisted studio viewA hollow threaded stem reference for vacuum gripper positioning. Review adjustment travel, mounting threads and the internal passage as one interface before releasing your drawing.
Explore component

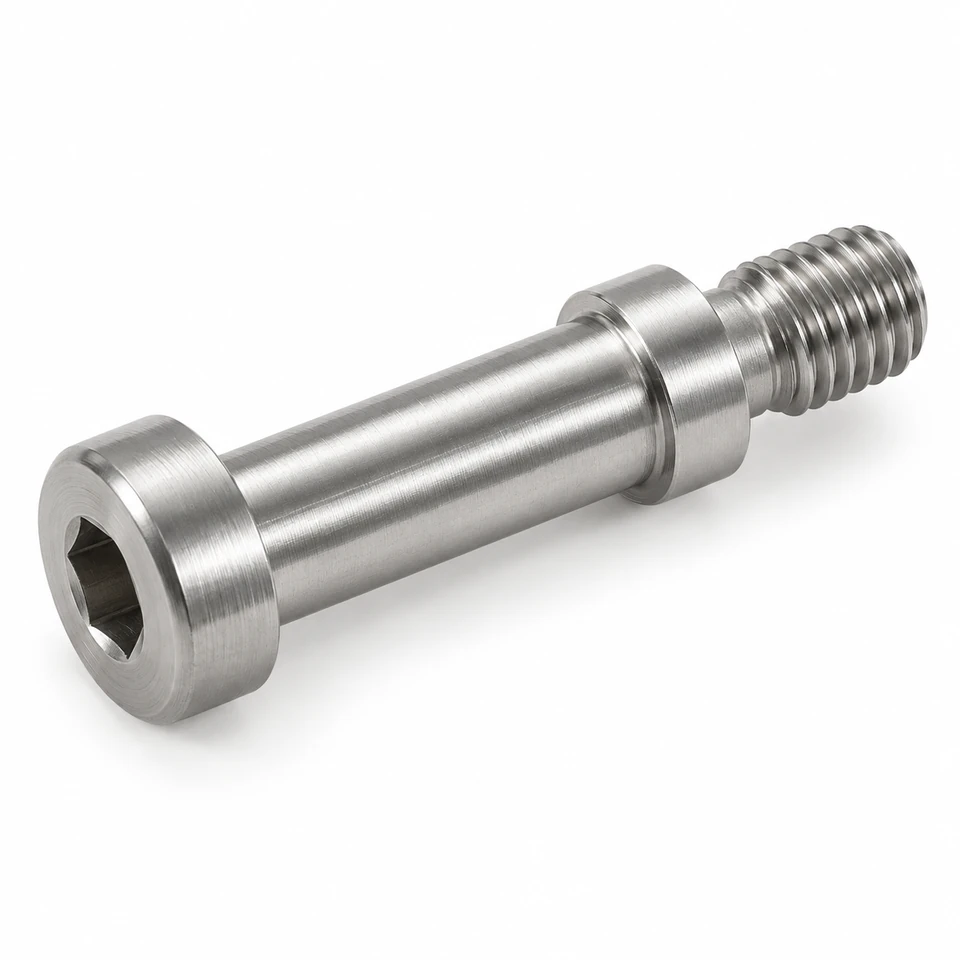

A shoulder-screw reference for actuator clevis pivots. Review the smooth bearing length, clevis width and thread engagement so the fastened joint retains the intended pivot clearance.
Explore component

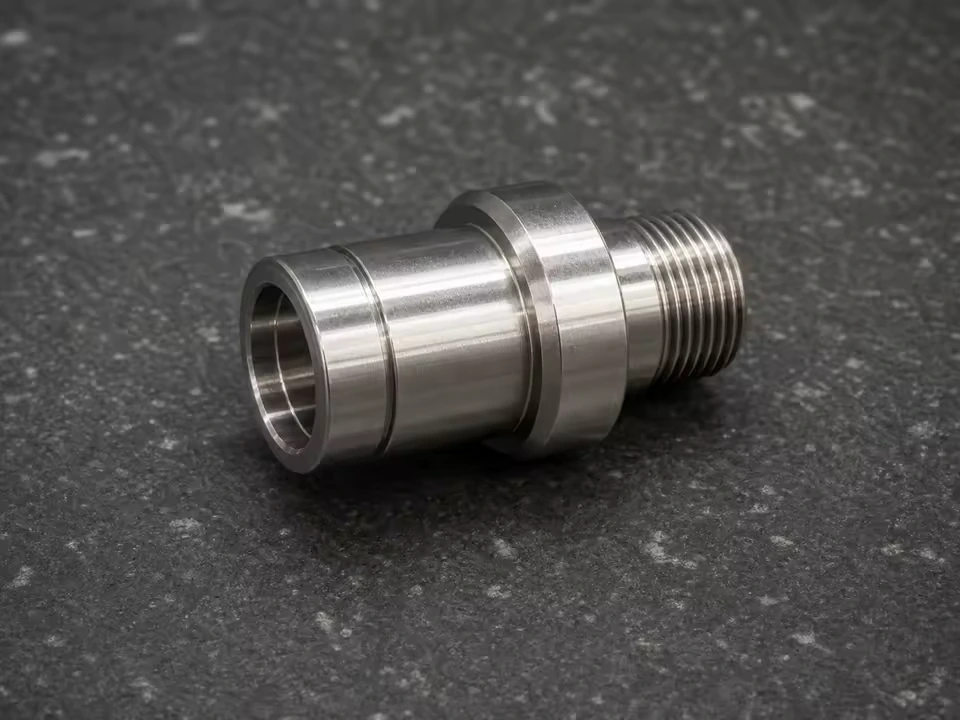

A stepped, hollow connector body with a threaded mounting section. Coordinate the contact or insert bore, panel interface and seating surfaces before reviewing production.
Explore component

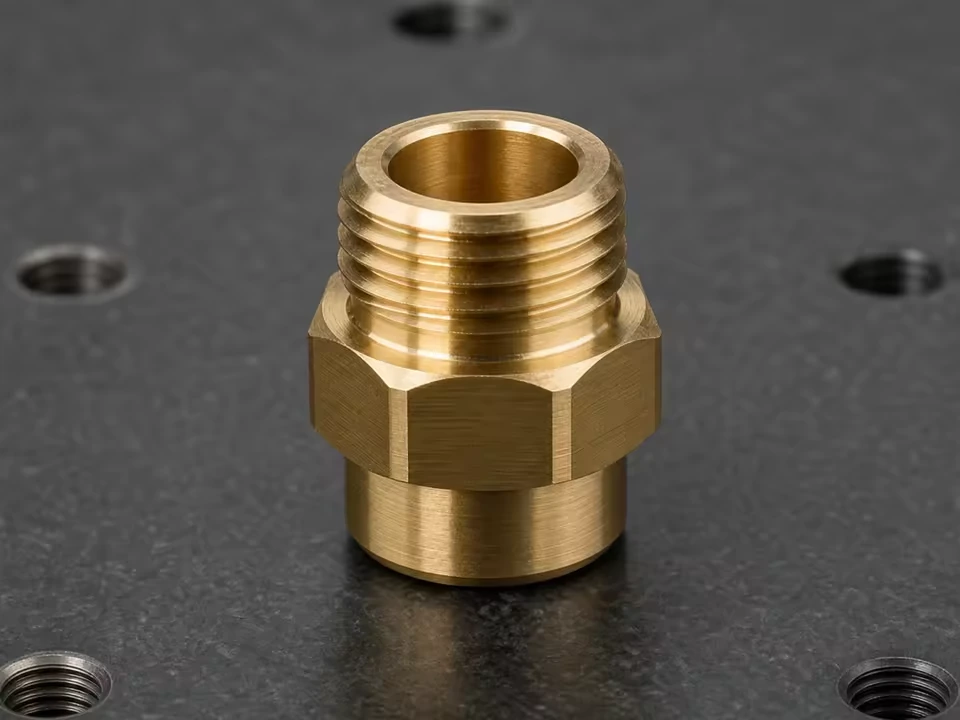

A compact brass fitting with a threaded connection, hex section and through passage. Review the mating port, sealing arrangement and installation access against the actual pneumatic circuit.
Explore componentWHAT DEFINES YOUR VERSION?
Use these examples to explain the geometry. Include a current dimensioned drawing to define the actual part.
Name the thread system, nominal size, pitch and class. Distinguish a thread specification from a plain bore diameter, and include the applicable drawing revision.
Show usable engagement length, runout and relief features. Agree the required thread gauge or other acceptance method, including any features that prevent normal gauge access.
If the component seals, show the actual sealing feature separately from the thread. Specify the material grade and finished condition of the interface instead of relying on the appearance of a reference part.
FROM EXAMPLE TO YOUR REQUIREMENT
Use an example to explain your idea.
Your own drawing defines the final specification.
