Flanges & covers / cs-product-016
Acrylic container cover

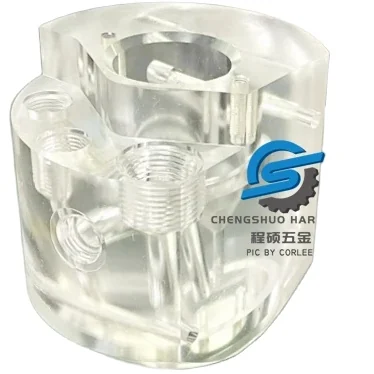

A transparent acrylic container cover with a substantial circular body. Specify the mating geometry, internal features and required surface condition.
- Material shown
- Plastic
- Process reference
- CNC machining
- Manufacturing model
- Custom, made to drawing
- Dimensions & tolerances
- Defined by your approved drawing
Key geometry & review priorities
- Transparent acrylic body
- Circular cover profile
- Internal and threaded features
Reference example, not a stocked standard part. Quote and feasibility require your specification.
Download review brief
THE PRODUCT CASE / YOUR BUYING DECISION
What must the cover close or contact, and which areas need a defined level of visual clarity?
A transparent machined cover combines a mechanical interface with a viewing surface. Use this acrylic PMMA reference to define closure geometry, contact areas and appearance requirements, while reviewing the material against the substances and handling conditions in your application.
Explore this product caseTHE FEATURES TO LOOK AT
A closer look
at this component.
A transparent acrylic container cover with a substantial circular body. Specify the mating geometry, internal features and required surface condition.
Original Chengshuo product reference01
Transparent acrylic body
02
Circular cover profile
03
Internal and threaded features
DEFINE YOUR PART
What needs to
be in your drawing?
Reference images explain geometry. Your approved drawing and agreed inspection records establish dimensions, material and acceptance requirements.
- Mounting face and hole-pattern datums
- Sealing, flatness and surface requirements
- Fastener clearance and assembly access
- Drawing number, revision, units and material grade.
- Surface treatment, sample quantity and repeat-order needs.
01 / REVIEW
Resolve the requirements.
Share your drawing and the features that affect function. Agree material, process scope, inspection and commercial conditions.
02 / SAMPLE
Define what approval means.
Agree the sample quantity and measurements or assembly checks required for acceptance. Record the drawing revision used.
03 / REPEAT
Control the next order.
Retain the approved specification and packaging requirements. Review design, material or finish changes before repeat production.
Questions before
your drawing review.
Can you change the dimensions or material?
This is a custom component example. Submit your required geometry and exact material grade for feasibility review; the reference image is not a fixed catalogue specification.
What quantity and lead time should I plan for?
Include both sample and production quantities plus your target date. The quotation confirms the agreed scope, price and schedule after review.
Can I send confidential drawings?
If your project needs an NDA, contact Alen before uploading confidential files. Website submission itself does not create a confidentiality agreement.
