Milled components / cs-product-017

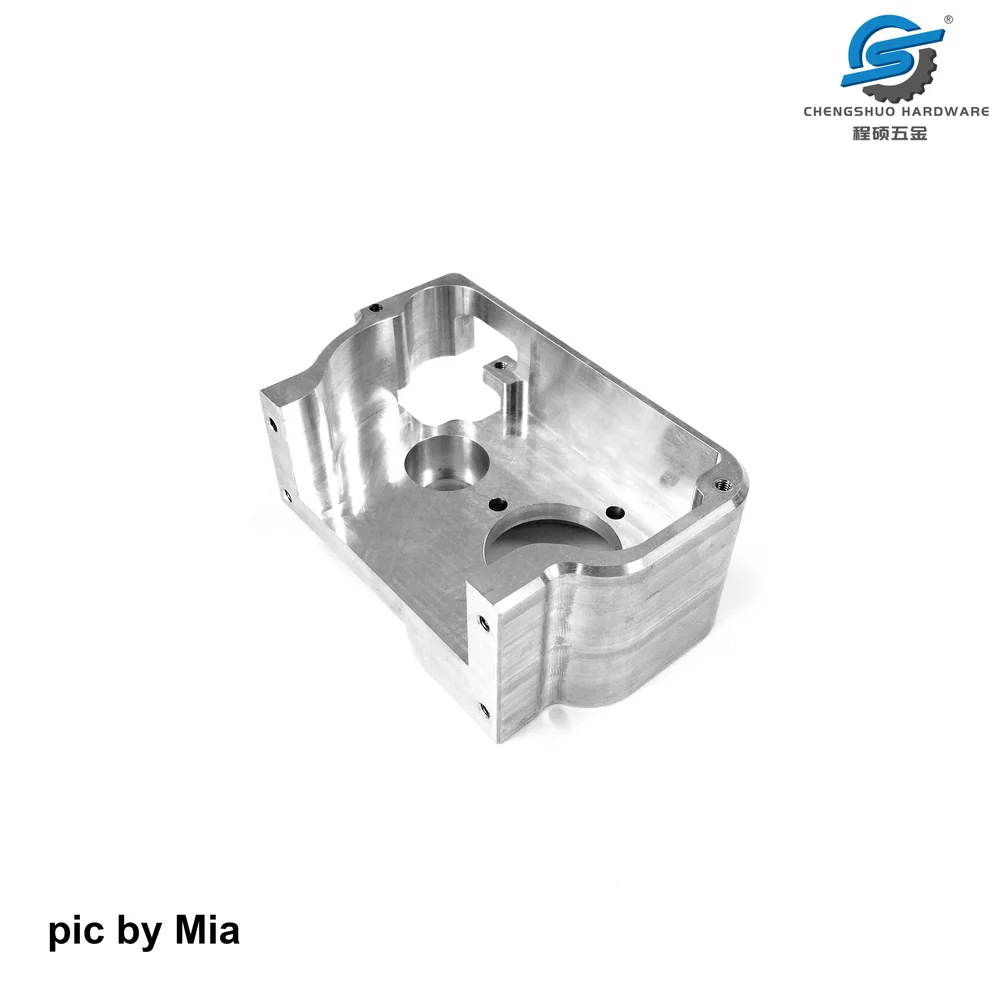

Aluminum positioning block
An aluminum positioning block with pockets, holes and a shaped exterior. Relate the locating features to the functional datums in your drawing.
- Material shown
- Aluminum
- Process reference
- CNC machining
- Manufacturing model
- Custom, made to drawing
- Dimensions & tolerances
- Defined by your approved drawing
Key geometry & review priorities
- Pocketed body
- Multiple hole features
- Contoured outer wall
Reference example, not a stocked standard part. Quote and feasibility require your specification.
Download review brief
THE PRODUCT CASE / YOUR BUYING DECISION
Which faces locate the block, and how should its pockets and holes be referenced from them?
A pocketed positioning block must connect internal features to the faces that locate it in a fixture. Use this aluminum CNC-machining reference to define the reference scheme, hole relationships and tool access before confirming your sample and inspection scope.
Explore this product caseBEFORE YOU RELEASE THE DRAWING
A practical next step.
Use these guides to define the records and checks your component needs.
Internal Pocket Corners: Match the Milling Radius to the Mating Part
Review the pocket corner, insert edge and permitted relief together so a square component can seat without forcing an unnecessarily small cutter.
Compare Machining Quotes with a Line-by-Line Scope WorksheetNormalize sample, first-release and repeat-order costs while checking inspection, finishing, packing and delivery assumptions before choosing a machining supplier.
THE FEATURES TO LOOK AT
A closer look
at this component.
An aluminum positioning block with pockets, holes and a shaped exterior. Relate the locating features to the functional datums in your drawing.
Original Chengshuo product reference01
Pocketed body
02
Multiple hole features
03
Contoured outer wall
DEFINE YOUR PART
What needs to
be in your drawing?
Reference images explain geometry. Your approved drawing and agreed inspection records establish dimensions, material and acceptance requirements.
- Pocket geometry and internal corner radii
- Hole positions and functional datums
- Clamping surfaces, edge breaks and finish
- Drawing number, revision, units and material grade.
- Surface treatment, sample quantity and repeat-order needs.
01 / REVIEW
Resolve the requirements.
Share your drawing and the features that affect function. Agree material, process scope, inspection and commercial conditions.
02 / SAMPLE
Define what approval means.
Agree the sample quantity and measurements or assembly checks required for acceptance. Record the drawing revision used.
03 / REPEAT
Control the next order.
Retain the approved specification and packaging requirements. Review design, material or finish changes before repeat production.
Questions before
your drawing review.
Can you change the dimensions or material?
This is a custom component example. Submit your required geometry and exact material grade for feasibility review; the reference image is not a fixed catalogue specification.
What quantity and lead time should I plan for?
Include both sample and production quantities plus your target date. The quotation confirms the agreed scope, price and schedule after review.
Can I send confidential drawings?
If your project needs an NDA, contact Alen before uploading confidential files. Website submission itself does not create a confidentiality agreement.
