Threaded components / cs-product-009
Stainless Steel Mechanical Joint Supplier | Custom RFQ

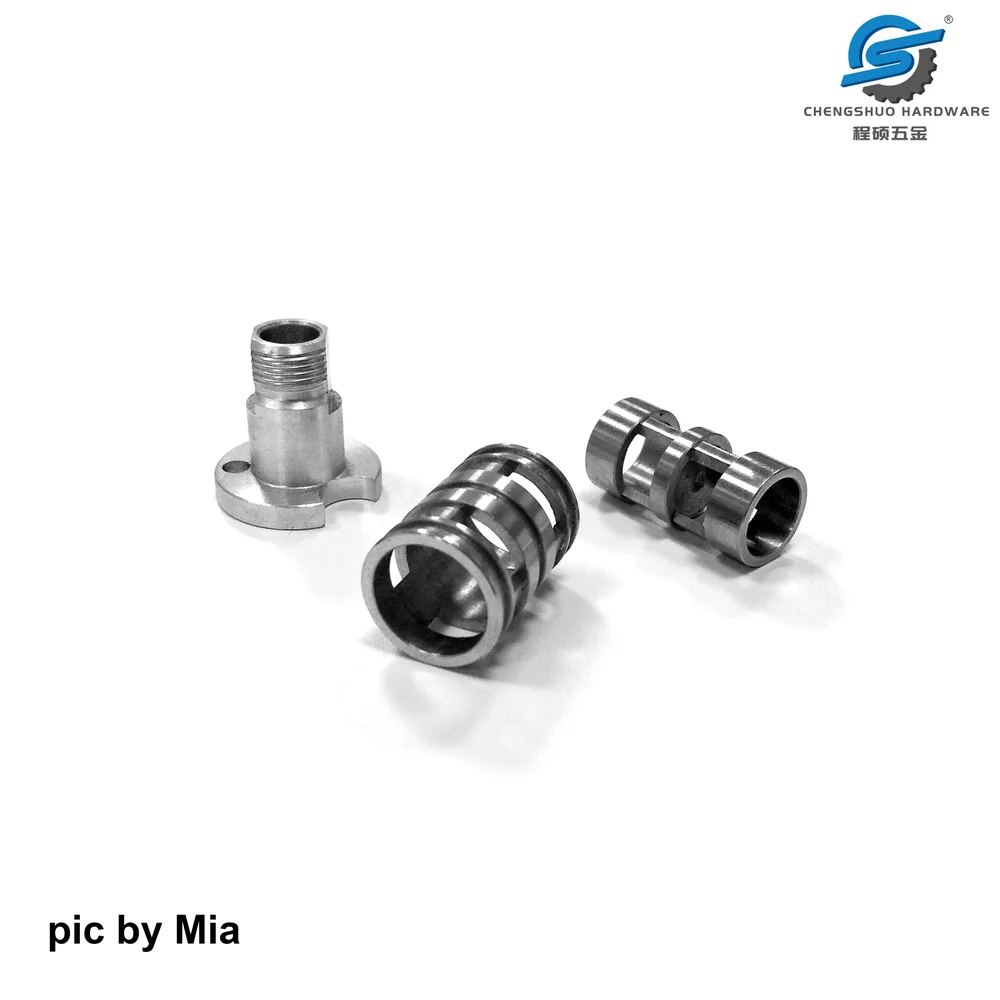

Request a stainless steel mechanical joint against your drawing, mating components and sample plan. This reference shows a cylindrical body, central bore and external grooves; agree the grade, dimensions and delivered condition for your own part.
- Material shown
- Stainless steel
- Process reference
- CNC machining
- Manufacturing model
- Custom, made to drawing
- Dimensions & tolerances
- Defined by your approved drawing
Key geometry & review priorities
- Cylindrical joint body
- Central bore
- Circumferential grooves
Reference example, not a stocked standard part. Quote and feasibility require your specification.
Download review brief
THE PRODUCT CASE / YOUR BUYING DECISION
Which bore and groove features perform a function, and what mating information defines that function?
A compact connector can combine locating, retention and passage requirements. This stainless steel joint reference focuses the discussion on its central bore and external grooves, helping buyers define the mating system before selecting dimensional and acceptance requirements.
Explore this product caseDrawing-led purchasing
Mechanical joint: agree the complete supply scope
Define the bore and mating interface
Show the joint in its assembly and identify the components that contact its central bore and outside surfaces. Give the functional diameters, relevant lengths and drawing references. Specify clearance or fit requirements against the actual mating part.
Identify the face or shoulder that locates the joint and the direction in which it is installed. Where the bore acts as a passage, add the connection and cleaning requirements that apply to the defined scope.
Dimension the groove and adjacent surfaces
Show each groove in section with its location, width, diameter and edge requirements. Identify the component that uses the groove, such as a separately specified retaining element, and provide its controlled drawing where relevant.
State which dimensions apply after the required treatment. Coordinate edge-break and cleaning instructions with the surfaces that must assemble, and agree the measurement access before samples.
Specify the stainless steel grade and finish
The pictured reference identifies stainless steel and CNC machining. Put the exact grade, delivered condition and any surface treatment on the released drawing. Specify the documents required for the material and treatment when they are part of the purchase scope.
If a supplier proposes an alternative, compare it with your requirements and record the decision on the controlled specification before sampling. The pictured geometry is a starting point for the discussion.
Agree the sample inspection scope
Identify the bore, groove and locating features that need reported results, together with their drawing references and delivered condition. Agree part support, measurement access and the method for the actual geometry.
An assembly or sealing test must be defined for the actual mating parts and the requested procedure. If one is required, identify the configuration, acceptance limits and responsible reviewer as a separate deliverable. Use the inspection requirements guide for the request.
Send the same scope to each machining supplier
Provide the drawing revision, sample and production quantities, material grade, finish and requested records. Identify supplied mating components, any separate assembly work, and the delivery conditions needed for a comparable quotation.
Keep the accepted sample, inspection record and approved drawing revision together for repeat orders. Compare the photographed flange coupling and stepped shaft as related interface examples, then send the actual part through the drawing-led enquiry.
Mechanical joint RFQ worksheet
| RFQ item | Specify before quotation | Record with the order |
|---|---|---|
| Bore | Dimensions, functional surface and mating component. | Drawing feature and measurement result. |
| Grooves | Profile, location, edges and related retaining element. | Agreed feature checks in the delivered condition. |
| Locating faces | Reference surfaces, lengths and installation orientation. | Datum and seating-face inspection scope. |
| Material | Stainless grade, condition and specified treatment. | Requested material or treatment documents. |
| Sample | Quantity, feature records and separately defined trial. | Sample identity, drawing revision and acceptance. |
| Repeat order | Approved files, packaging and notification of changes. | Release baseline and approved deviations. |
Questions before requesting a machining quotation
What material is shown for this mechanical joint?
The existing product reference identifies stainless steel. Specify the exact grade, condition and any surface treatment required for your drawing.
Which dimensions should be included in the RFQ?
Provide the bore, outside profile, groove positions and relevant locating faces with their limits and drawing references. Include the mating-part information needed for assembly.
How should an external groove be specified?
Give its diameter, width, axial location, profile and edge requirements in the delivered condition. Provide the mating retaining element drawing if one is required.
Can the supplier quote an assembly test?
Describe the actual mating parts, installation condition, procedure, acceptance criteria and responsible reviewer. Identify the test separately in the requested scope.
What records should accompany the sample?
Identify the features requiring measured results and the drawing revision, datum and method to be used. List any material or treatment documentation that the order requires.
How are quantity and delivery time confirmed?
Provide sample and production quantities and your target date. The quotation confirms the reviewed scope, requested records and schedule for the specific order.
THE FEATURES TO LOOK AT
A closer look
at this component.

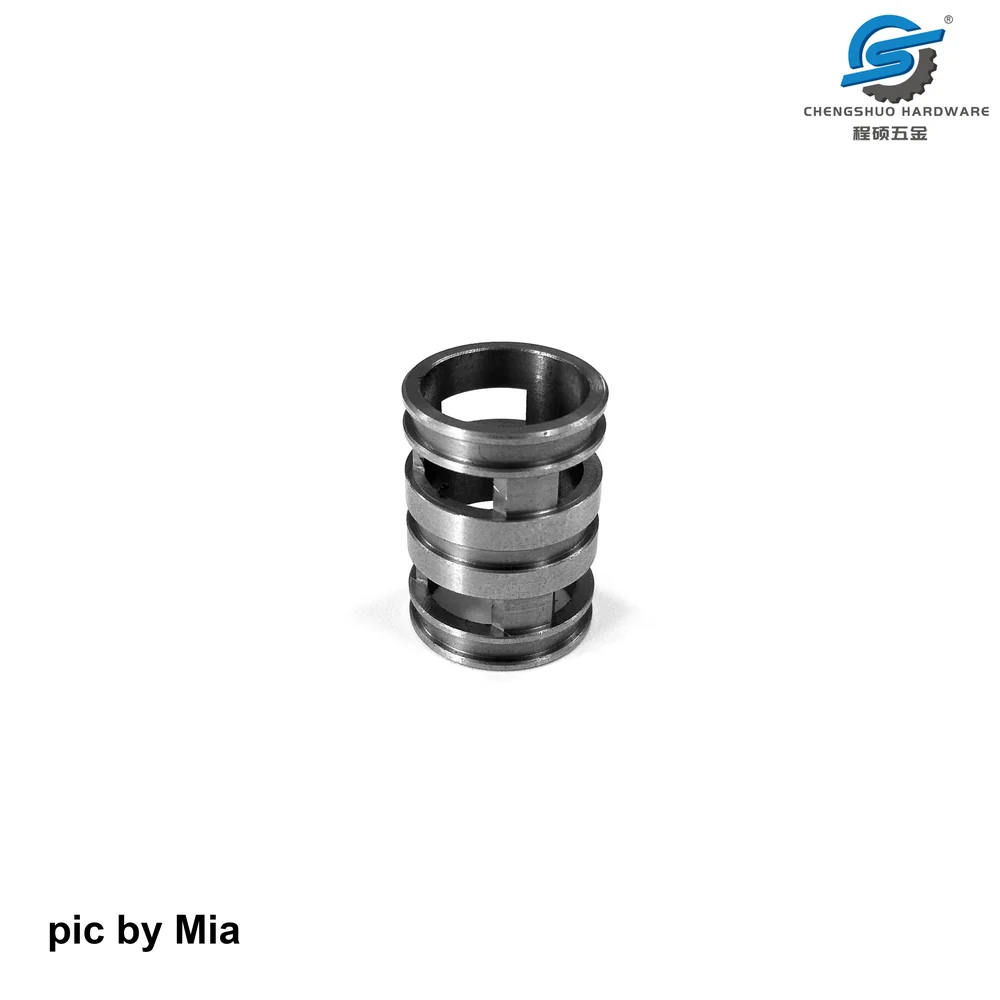

A stainless steel joint with a cylindrical body, central bore and external grooves. Identify the contact surfaces and fit requirements for your assembly.
Original Chengshuo product reference01
Cylindrical joint body
02
Central bore
03
Circumferential grooves
DEFINE YOUR PART
What needs to
be in your drawing?
Use the released drawing to identify the bore, grooves, mating interfaces, material condition and feature-level records requested with the order.
- Thread standard, size and class
- Engagement length and gauging method
- Sealing surfaces, material and treatment
- Drawing number, revision, units and material grade.
- Surface treatment, sample quantity and repeat-order needs.
01 / REVIEW
Resolve the requirements.
Share your drawing and the features that affect function. Agree material, process scope, inspection and commercial conditions.
02 / SAMPLE
Define what approval means.
Agree the sample quantity and measurements or assembly checks required for acceptance. Record the drawing revision used.
03 / REPEAT
Control the next order.
Retain the approved specification and packaging requirements. Review design, material or finish changes before repeat production.
