Threaded components / cs-product-008
Brass Flanged Nut Supplier | Custom Drawing RFQ
Request a brass flanged nut against your drawing and mating mechanism. This original product reference has a broad flange face, central opening and peripheral hole features; specify the grade, interfaces and sample checks for your own component.
- Material shown
- Brass
- Process reference
- CNC turning
- Manufacturing model
- Custom, made to drawing
- Dimensions & tolerances
- Defined by your approved drawing
Key geometry & review priorities
- Circular flange face
- Central opening
- Peripheral hole features
Reference example, not a stocked standard part. Quote and feasibility require your specification.
Download review brief
THE PRODUCT CASE / YOUR BUYING DECISION
How should the central thread and flange mounting pattern locate against the mating mechanism?
A flanged nut must connect its central interface to a mounting pattern. This brass CNC-turning reference helps equipment builders specify thread engagement, flange seating and four mounting holes as one coordinated assembly requirement rather than isolated dimensions.
Explore this product caseDrawing-led purchasing
Flanged nut: define central and mounting interfaces
Define the central mating interface
Show the mating component and identify the central opening, seating relationship and installation direction. If the requested part has a thread, state the standard, pitch, tolerance class and usable engagement on your drawing.
Provide the mating-part revision and identify any gauge or fastener required for an agreed sample check. Separate thread acceptance from the rest of the assembly test.
Locate the flange and mounting pattern
Identify the flange seating face, hole features and the reference used to position them around the central interface. Give the relevant diameters, locations and edge conditions for the actual drawing.
Show the fastening access and any nearby clearance. If the mechanism uses a separate screw or mating plate, list it explicitly in the request and describe its interface.
State brass grade and finished condition
The existing product reference identifies brass. Specify the exact grade, supplied condition and any finish or treatment required for your version. Mark dimensions that apply after the final treatment.
List the material or treatment records requested for acceptance. Record any alternative as a proposal until it is approved against the controlled drawing.
Agree the sample inspection scope
Identify the central interface, flange face and mounting features that require measured results. Give their drawing references and agree the inspection method and part support.
If a thread or assembly trial is needed, identify the mating component, procedure and responsible reviewer. Use the inspection requirements guide to define the records.
Send a complete drawing package
Send each supplier the same drawing revision, brass grade, finish, sample and production quantities and requested records. Identify the flanged nut separately from fasteners or assembly work.
Keep the sample decision and any later change with the repeat-order baseline. Compare the mechanical joint and flange seat, then use the drawing-led enquiry.
Purchasing and inspection worksheet
| RFQ item | Specify before quotation | Record with the order |
|---|---|---|
| Central interface | Opening or specified thread and mating part. | Feature ID and agreed thread check. |
| Flange face | Seating surface, datum and contact. | Drawing reference and inspection scope. |
| Mounting pattern | Hole sizes, positions and fastener access. | Feature-level sample results. |
| Material | Brass grade, condition and finish. | Required material or treatment records. |
| Sample | Quantity and separately defined assembly trial. | Identity and acceptance decision. |
| Repeat | Approved files and change notification. | Release baseline and records. |
Questions before requesting a machining quotation
What material is identified for this flanged nut?
The existing product reference identifies brass. Specify the exact grade, condition and finish for your own drawing.
What information should accompany the enquiry?
Provide the central interface, flange face, mounting-hole pattern, mating mechanism and drawing references.
How should a required thread be specified?
State the thread standard, size, pitch, tolerance class and usable engagement together with the mating-part revision.
Can an assembly trial be quoted?
Identify the mating part, installation procedure, acceptance criteria and reviewer, and include the trial separately in the request.
Which measurements belong in the sample record?
List the nominated central, flange and mounting features with the drawing revision and agreed method.
How are quantities and delivery agreed?
Provide sample and production quantities and a target date; the quotation confirms the reviewed scope and schedule.
BEFORE YOU RELEASE THE DRAWING
A practical next step.
Use these guides to define the records and checks your component needs.
THE FEATURES TO LOOK AT
A closer look
at this component.

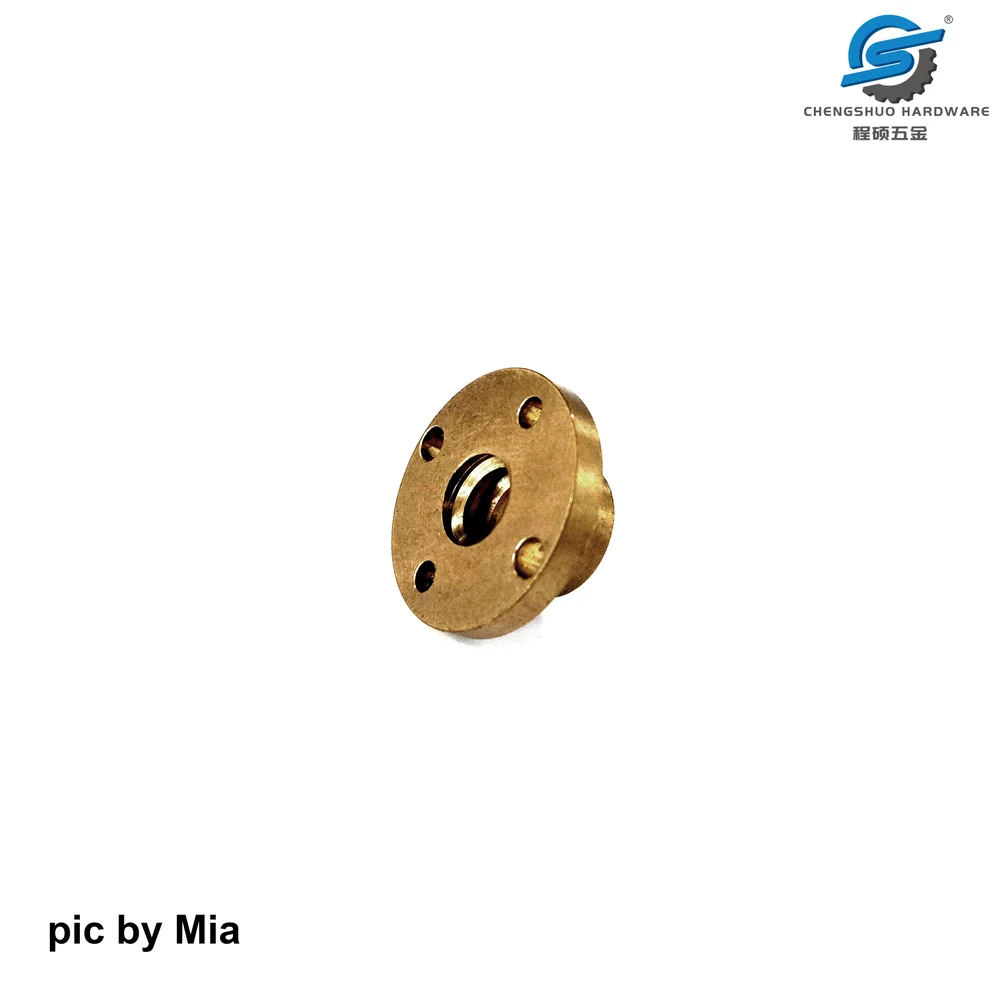

A brass flanged nut with a broad round face and a central opening. Review the mating interface and the relationship between the face and hole pattern.
Original Chengshuo product reference01
Circular flange face
02
Central opening
03
Peripheral hole features
DEFINE YOUR PART
What needs to
be in your drawing?
Use the released drawing to identify the central interface, flange face and mounting hole pattern, material condition and feature-level records requested with the order.
- Thread standard, size and class
- Engagement length and gauging method
- Sealing surfaces, material and treatment
- Drawing number, revision, units and material grade.
- Surface treatment, sample quantity and repeat-order needs.
01 / REVIEW
Resolve the requirements.
Share your drawing and the features that affect function. Agree material, process scope, inspection and commercial conditions.
02 / SAMPLE
Define what approval means.
Agree the sample quantity and measurements or assembly checks required for acceptance. Record the drawing revision used.
03 / REPEAT
Control the next order.
Retain the approved specification and packaging requirements. Review design, material or finish changes before repeat production.
