Threaded components / cs-product-027

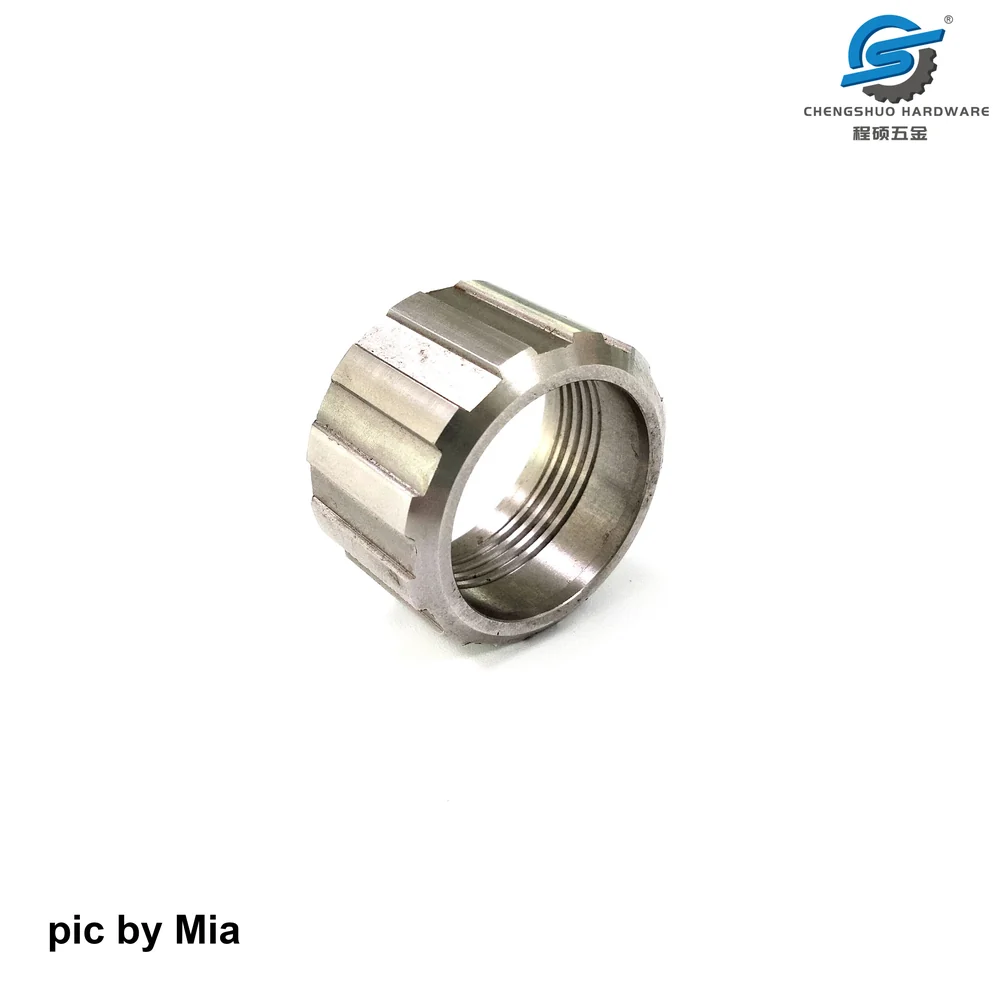

Internal-thread lock nut
An internally threaded lock nut with repeated outer recesses. Specify the thread standard, mating part and tool-access geometry for your version.
- Material shown
- Confirmed during drawing review
- Process reference
- Drawing-specific process review
- Manufacturing model
- Custom, made to drawing
- Dimensions & tolerances
- Defined by your approved drawing
Key geometry & review priorities
- Internal threaded bore
- Repeated outer recesses
- Short ring-shaped body
Reference example, not a stocked standard part. Quote and feasibility require your specification.
Download review brief
THE PRODUCT CASE / YOUR BUYING DECISION
Which thread and seating requirements secure the assembly, and how will the nut be installed?
A ring-shaped nut with external recesses needs a complete fastening brief. Use this internal-thread reference to define the mating thread, seating face and installation tool interface, then agree material and acceptance requirements for your own assembly.
Explore this product caseBEFORE YOU RELEASE THE DRAWING
A practical next step.
Use these guides to define the records and checks your component needs.
THE FEATURES TO LOOK AT
A closer look
at this component.
An internally threaded lock nut with repeated outer recesses. Specify the thread standard, mating part and tool-access geometry for your version.
Original Chengshuo product reference01
Internal threaded bore
02
Repeated outer recesses
03
Short ring-shaped body
DEFINE YOUR PART
What needs to
be in your drawing?
Reference images explain geometry. Your approved drawing and agreed inspection records establish dimensions, material and acceptance requirements.
- Thread standard, size and class
- Engagement length and gauging method
- Sealing surfaces, material and treatment
- Drawing number, revision, units and material grade.
- Surface treatment, sample quantity and repeat-order needs.
01 / REVIEW
Resolve the requirements.
Share your drawing and the features that affect function. Agree material, process scope, inspection and commercial conditions.
02 / SAMPLE
Define what approval means.
Agree the sample quantity and measurements or assembly checks required for acceptance. Record the drawing revision used.
03 / REPEAT
Control the next order.
Retain the approved specification and packaging requirements. Review design, material or finish changes before repeat production.
Questions before
your drawing review.
Can you change the dimensions or material?
This is a custom component example. Submit your required geometry and exact material grade for feasibility review; the reference image is not a fixed catalogue specification.
What quantity and lead time should I plan for?
Include both sample and production quantities plus your target date. The quotation confirms the agreed scope, price and schedule after review.
Can I send confidential drawings?
If your project needs an NDA, contact Alen before uploading confidential files. Website submission itself does not create a confidentiality agreement.
