01 / THE BUYING QUESTION
How must the angled face and its openings align relative to the circular mounting base?
02 / READ THE GEOMETRY
Details that shape
the requirement.
Stepped circular base
Identify the base diameter and seating face used for location. Distinguish locating contact from clearance regions and surfaces used only during fastening.
Angled upper body
Define the required orientation between the upper body and base. Include the surrounding equipment envelope to explain access and any clearance restrictions.
Front-face openings
Specify the central and surrounding openings from a coordinated reference scheme. Describe the function and mating geometry of each opening in your design.
FROM GEOMETRY TO THE WORKSHOP
See the manufacturing context.
Explore a Chengshuo workshop scene alongside the features in this product study. This is general process footage, not footage of the reference part or its inspection results.
Milling, workholding and tool access
Machine-interior views show the spindle, cutting tool and held components.
How will tool access, clamping references and secondary features be defined?
Pocketed positioning blocksReview my part with this process ONE PART. THREE BUYING DECISIONS.
What matters
to your team?
Define the functional interfaces.
Make the orientation reference explicit. The visible angle alone does not define how the front interface must sit after fastening.
Discuss your engineering requirementsMake the quotation comparable.
Confirm inspection scope for the angled geometry and include any special mating fixture as a separate quotation item.
Discuss your purchasing requirementsAgree the acceptance evidence.
Use the agreed mounting references for the face measurements. Record assembly orientation and hardware when evaluating the sample.
Discuss your quality requirements03 / A PART-SPECIFIC REVIEW
From feature
to machining brief.
01Connect both interface planes
Provide an assembly model or section showing the mounting base and front mating component. Explain which feature establishes orientation when the connector is installed.
02Review access and finished geometry
Specify stainless grade, finish and the critical geometric relationships. Discuss access for machining and inspection of the angled face, openings and base as one component.
03Define the assembly review
Agree dimensions and reference setup for the inspection record. If mating access or alignment needs a trial, identify the fixture, hardware and acceptance criteria before sample evaluation.
04 / BEFORE SAMPLE APPROVAL
Agree what
acceptance will show.
Verify the mounting base and specified seating references.- Check front-face orientation and required opening locations.
- Inspect functional edges and record any agreed assembly trial.
Product reference & scope

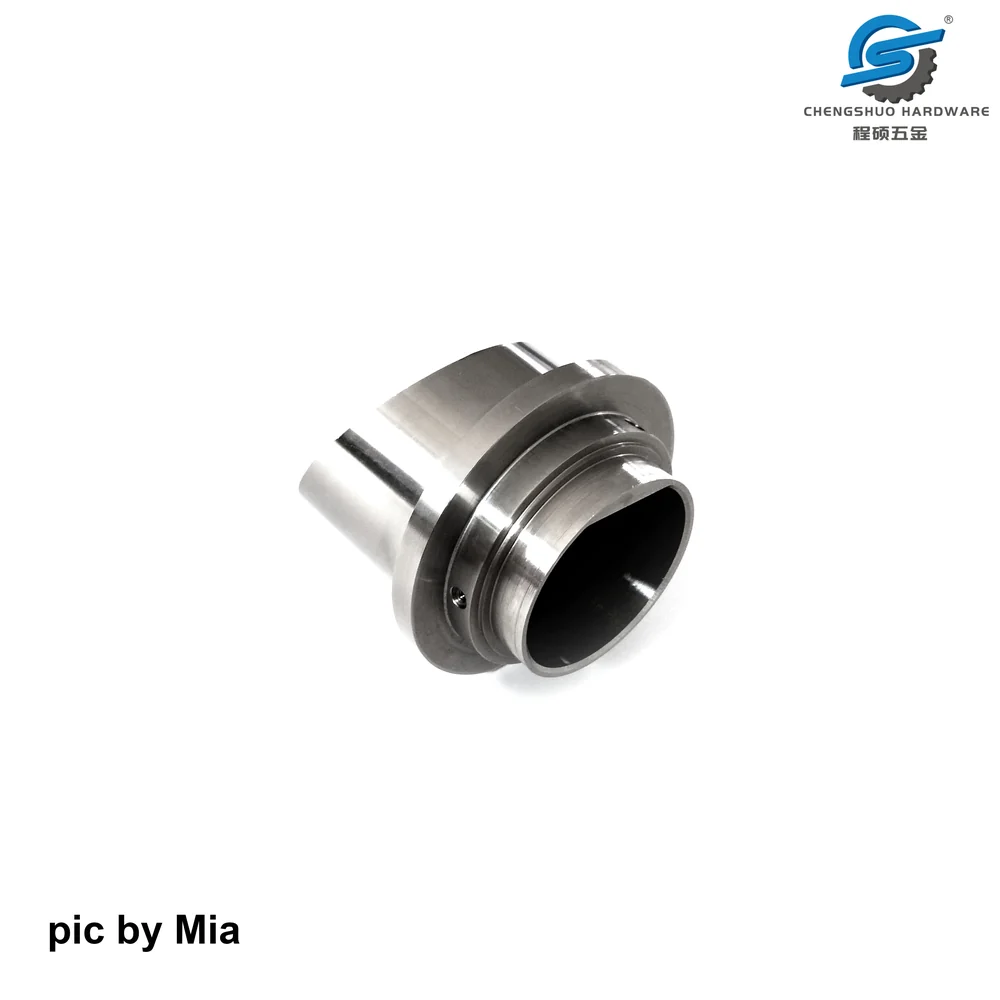

This case uses a photographed Chengshuo component to explain the drawing, purchasing and inspection decisions for a similar part. Project specifications and acceptance are agreed during review.
Original Chengshuo product reference
