CONTACT COMPONENTS • FIT • FINISH
Review drawing-defined metal contact components against the pin, socket, wire and housing in your design. Confirm material, machining, finishing and inspection scope before sample manufacture.
Request a contact-part drawing review
FOR CONNECTOR AND TEST-FIXTURE BUYERS
We machine drawing-defined contact components. Your mating parts, wire termination and finishing requirements determine what the sample must demonstrate.
01PCB test receptacle socket
Receiving bore, retention barb and tail geometry affect probe replacement and fixture assembly; keep internal edges free of loose burrs.
Supply mating probe and fixture details; agree bore and retention dimensions, plating scope and first-sample records.
02Pogo pin plunger contact
Tip profile, guide diameter and shoulders determine the mechanical envelope; they do not define the assembled spring-contact force.
Send barrel fit, travel envelope and finish requirements; define dimensional acceptance separately from electrical and cycle-life tests.
03Brass solder-cup socket contact
A clean mating bore and accessible solder cup serve different functions. Specify both ends and any surfaces excluded from plating.
Provide pin and wire sizes, plating specification and soldering access; agree finished dimensions and sample marking.
YOUR PROJECT. YOUR PRIORITIES.
Align engineering, sourcing and quality around a clear part definition before the quotation and sample review.
Identify locating diameters, insertion depths, shoulders and contact zones. Include the mating pin, barrel, insulator or wire interface, with the current drawing revision.
State the material grade, plating specification and any masked surfaces. Identify which fit dimensions apply after finishing and agree edge condition and cleanliness.
Agree dimensional and surface records for the machined component. Specify any electrical, spring-force or cycle-life test, its setup and the responsible party before it enters the quotation.
YOUR NEXT ORDER / EVIDENCE & REQUIREMENTS
Separate locating geometry, contact surfaces and test scope before approval. Carry variant references into the order and packing brief.
Explore the part inspection planRelevant order handovers
Pin order handoverDelivery recorded 29 Jun 2026Mixed-component orderDelivery recorded 21 Jul 2026Selected for the purchasing question. The customers’ actual industries are not disclosed.
FROM THE CHENGSHUO PORTFOLIO / ONE PHOTOGRAPHED SERIES

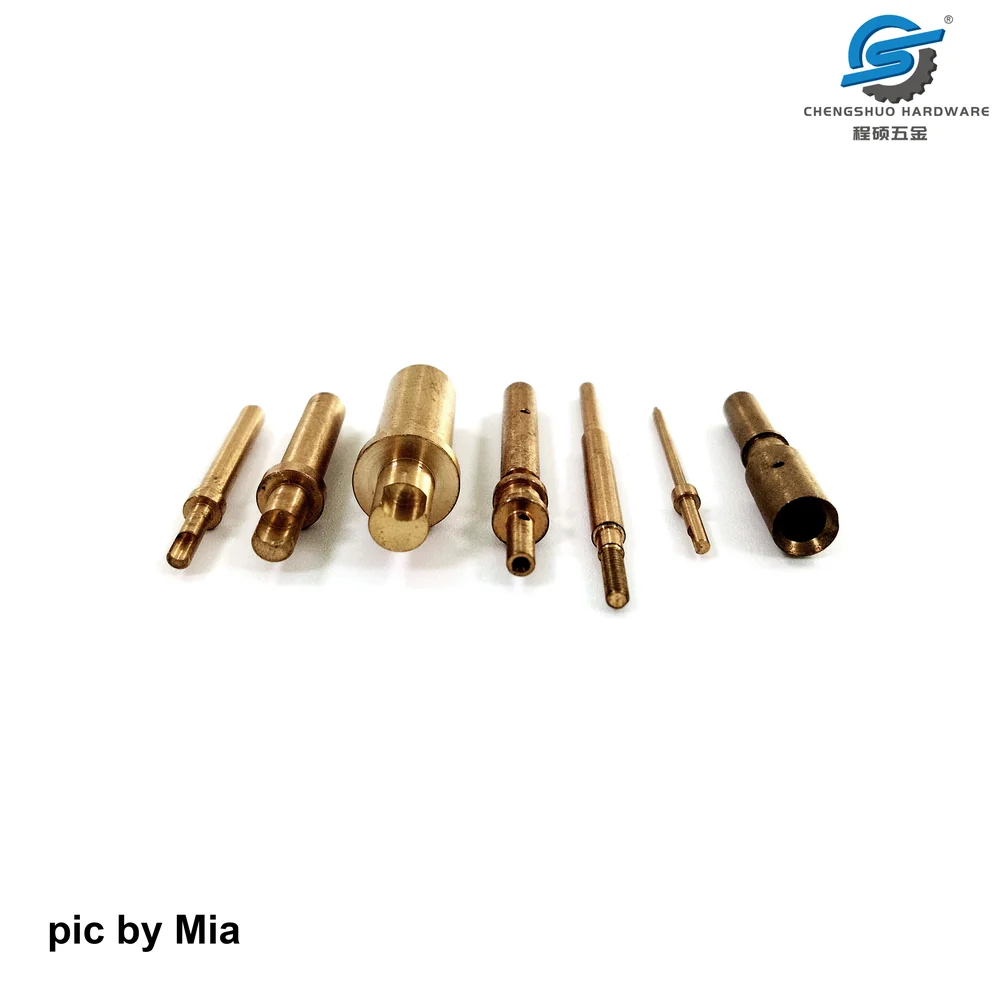

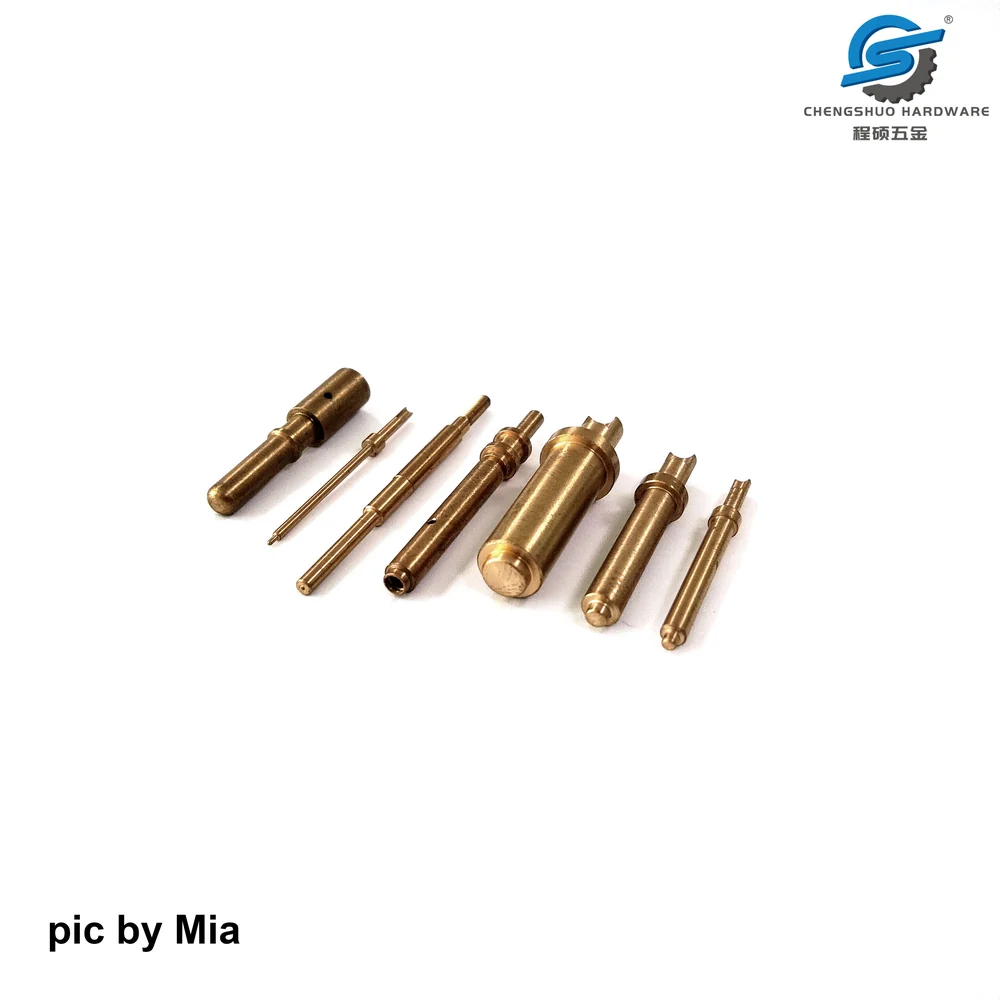

Two source photographs show this brass component series. They establish the visible geometry, not a completed customer qualification or electrical-test result.
Separate locating diameters from contact zones. The case explains which material, finish and inspection requirements to agree for your own drawing.
Source: Original Chengshuo product reference. Published material: brass; published process: CNC machining. The exact alloy, plating, dimensions and test results are not established by these photographs.
THE HANDOVER TO CHENGSHUO
Current contact-part drawing, revision and mating interfacesMaterial grade, plating specification and finished fit dimensionsContact zones, edge condition and required inspection recordsSample and production quantities, test responsibilities and packagingA photograph shows geometry. It does not establish contact resistance, rated current, spring force or cycle life. Define the test method, mating arrangement, acceptance limits and responsible party as a separate project requirement.
Product examples help define the conversation. Suitability is assessed against your component specification.
Contact-pin drawing checklistEXPLORE ANOTHER BUYER PATHWAY
