Milled components / cs-product-019
Aluminum vice clamp

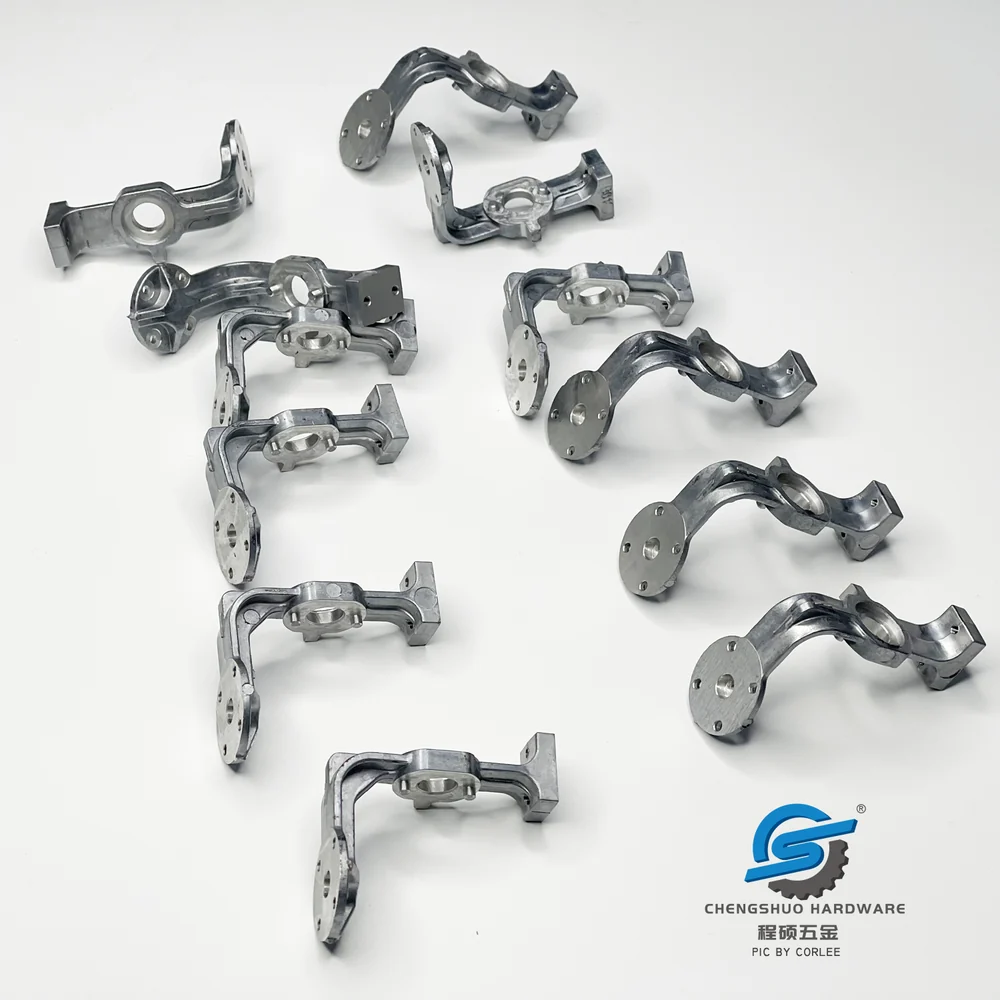

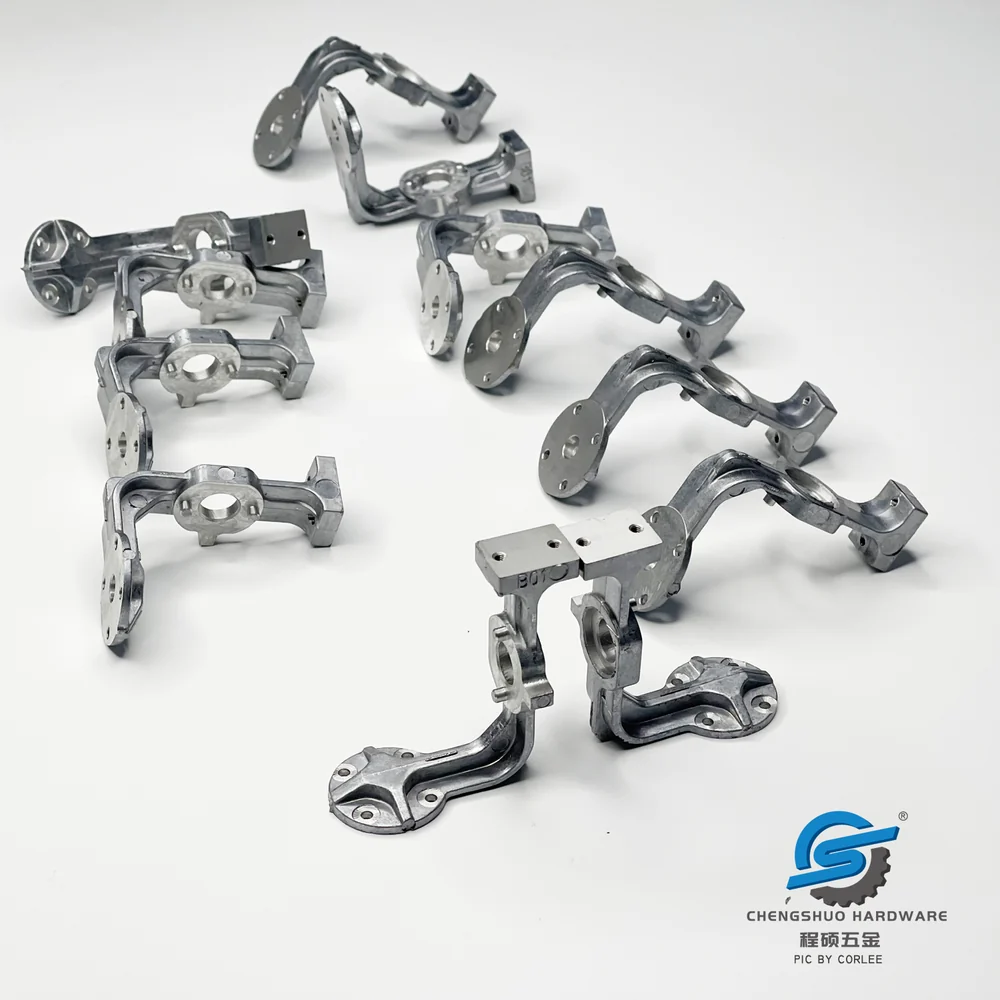

Aluminum vice-clamp components with curved profiles and mounting holes. Identify the contact geometry and the mounting interfaces required for your fixture.
- Material shown
- Aluminum
- Process reference
- Die casting and CNC machining
- Manufacturing model
- Custom, made to drawing
- Dimensions & tolerances
- Defined by your approved drawing
Key geometry & review priorities
- Curved clamp profiles
- Mounting hole features
- Shaped contact regions
Reference example, not a stocked standard part. Quote and feasibility require your specification.
Download review brief
THE PRODUCT CASE / YOUR BUYING DECISION
Where should the clamp contact the workpiece, and what machining is required after casting?
A clamp component needs a defined contact shape and a clear relationship to its mounting features. This aluminum die-casting and CNC-machining reference helps machine builders review the blank, machined contact regions and assembly checks around their own workpiece and fixture.
Explore this product caseTHE FEATURES TO LOOK AT
A closer look
at this component.
Aluminum vice-clamp components with curved profiles and mounting holes. Identify the contact geometry and the mounting interfaces required for your fixture.
Original Chengshuo product reference01
Curved clamp profiles
02
Mounting hole features
03
Shaped contact regions
DEFINE YOUR PART
What needs to
be in your drawing?
Reference images explain geometry. Your approved drawing and agreed inspection records establish dimensions, material and acceptance requirements.
- Pocket geometry and internal corner radii
- Hole positions and functional datums
- Clamping surfaces, edge breaks and finish
- Drawing number, revision, units and material grade.
- Surface treatment, sample quantity and repeat-order needs.
01 / REVIEW
Resolve the requirements.
Share your drawing and the features that affect function. Agree material, process scope, inspection and commercial conditions.
02 / SAMPLE
Define what approval means.
Agree the sample quantity and measurements or assembly checks required for acceptance. Record the drawing revision used.
03 / REPEAT
Control the next order.
Retain the approved specification and packaging requirements. Review design, material or finish changes before repeat production.
Questions before
your drawing review.
Can you change the dimensions or material?
This is a custom component example. Submit your required geometry and exact material grade for feasibility review; the reference image is not a fixed catalogue specification.
What quantity and lead time should I plan for?
Include both sample and production quantities plus your target date. The quotation confirms the agreed scope, price and schedule after review.
Can I send confidential drawings?
If your project needs an NDA, contact Alen before uploading confidential files. Website submission itself does not create a confidentiality agreement.
