Milled components / cs-product-018
Custom Aluminum Fixing Plate Supplier | RFQ

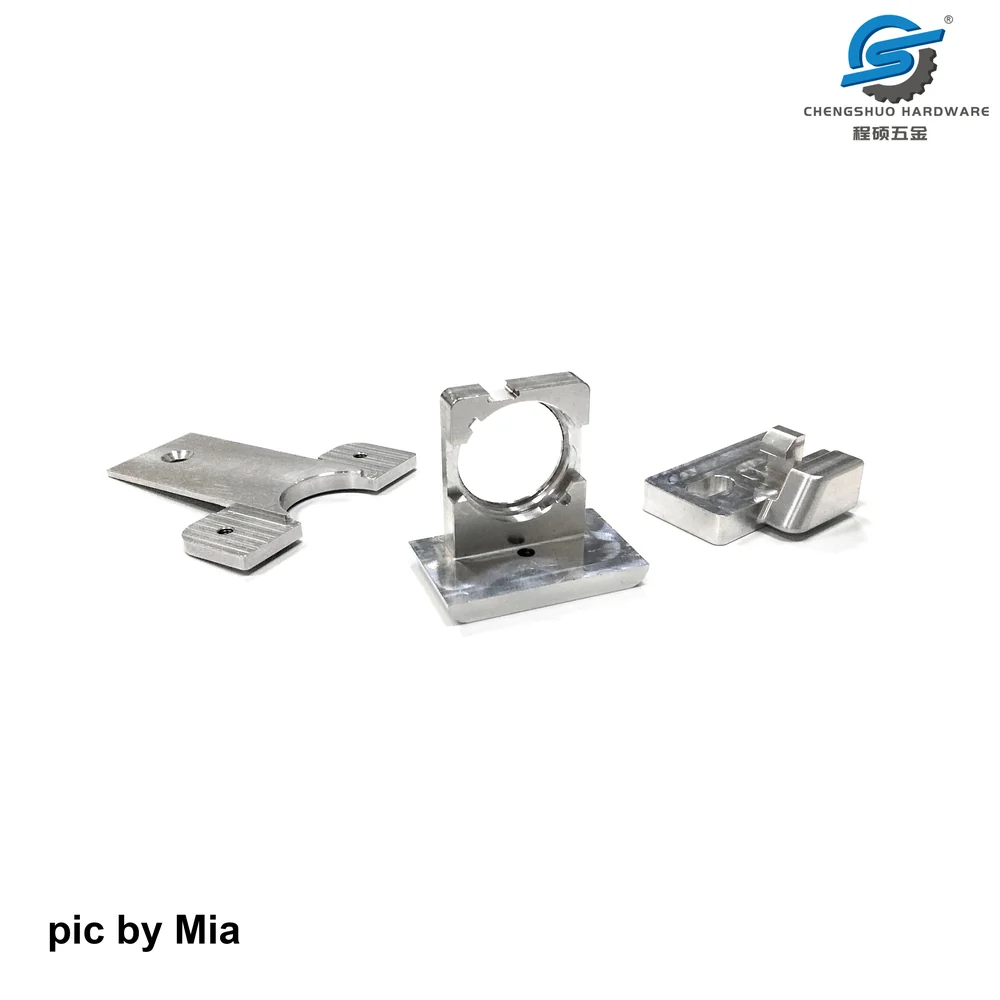

Request an aluminum fixing plate for your equipment drawing and mounting arrangement. This original product reference has an angled form and a central mounting opening; specify your alloy, attachment faces, dimensions and sample checks.
- Material shown
- Aluminum
- Process reference
- CNC machining
- Manufacturing model
- Custom, made to drawing
- Dimensions & tolerances
- Defined by your approved drawing
Key geometry & review priorities
- Angled plate form
- Central mounting opening
- Flat attachment faces
Reference example, not a stocked standard part. Quote and feasibility require your specification.
Download review brief
THE PRODUCT CASE / YOUR BUYING DECISION
Which attachment surface sets the plate position, and can the fasteners be installed in the proposed assembly?
An angled fixing plate connects surfaces that may be assembled in different directions. This aluminum CNC-machining reference helps equipment buyers define attachment faces, opening geometry and fastening access, then specify the relationships that matter after the plate is installed.
Explore this product caseDrawing-led purchasing
Fixing plate: define attachment and access
Identify the attachment faces
Show the plate in the equipment assembly and identify which surfaces locate it against the supporting parts. Mark the assembly direction, bearing areas and any adjacent clearance.
Provide the mating-part drawings or interface limits and the fasteners required for a sample fit check. Identify which items are supplied separately.
Dimension openings and fastener access
Define the central mounting opening, plate profile and the relevant hole or slot locations from the selected references. Show the tool envelope needed to install and tighten the fastener.
Specify edge conditions where the part contacts a mating surface or is handled during installation. State which dimensions apply in the final delivered condition.
State the aluminum grade and finish
The product reference identifies aluminum. Include the exact alloy and supplied condition in your drawing, together with any finish or surface treatment required for the application.
List material and treatment records when they form part of acceptance. A proposed change to grade or finish should be agreed and documented before sample release.
Agree sample inspection
Identify the attachment faces, opening and other features requiring reported measurements. Provide their drawing references and agree the part support and measurement method for the actual angled geometry.
If an installation check is required, name the fasteners and mating parts, procedure and reviewer. The inspection requirements guide helps define the records to request.
Prepare a comparable RFQ
Send the same released drawing, material, finish, sample and production quantities and acceptance requirements to each supplier. List separately supplied fasteners and assembly work as separate scope items.
Retain the sample decision and any later change with the repeat-order baseline. Compare the positioning block and flange seat, then send the actual files through the machining enquiry.
Purchasing and inspection worksheet
| RFQ item | Specify before quotation | Record with the order |
|---|---|---|
| Attachment | Locating and bearing faces, assembly direction. | Drawing references and agreed checks. |
| Opening | Mounting geometry and functional limits. | Feature ID and measured result. |
| Tool access | Fastener and installation envelope. | Mating-part revision and trial scope. |
| Material | Aluminum grade, condition and finish. | Material and treatment documents. |
| Sample | Quantity, measurements and separate fit trial. | Identity and acceptance. |
| Repeat | Released drawings and change notification. | Order baseline and records. |
Questions before requesting a machining quotation
What material is shown for the fixing plate?
The existing product reference identifies aluminum. Specify the alloy, condition and finish required for your own drawing.
What mounting information should I provide?
Show the attachment faces, central opening, fastener and mating interfaces with the selected drawing references.
How should tool access be defined?
Provide the fastener and installation direction, available tool envelope and the surrounding assembly clearances.
Can a fit check be included?
Identify the actual mating parts, fasteners, procedure and acceptance reviewer and list the check in the quotation scope.
What sample records should be agreed?
List the attachment faces, opening and other nominated features with the drawing revision and agreed measurement method.
How are sample quantities and timing agreed?
State sample and production quantities and your target date. The quotation confirms the reviewed scope and schedule.
THE FEATURES TO LOOK AT
A closer look
at this component.
An aluminum fixing plate with an angled form and a central mounting opening. Define the relationship between the mounting faces and the hole centre.
Original Chengshuo product reference01
Angled plate form
02
Central mounting opening
03
Flat attachment faces
DEFINE YOUR PART
What needs to
be in your drawing?
Use the released drawing to identify the attachment faces, central opening and fastener access, material condition and feature-level records requested with the order.
- Pocket geometry and internal corner radii
- Hole positions and functional datums
- Clamping surfaces, edge breaks and finish
- Drawing number, revision, units and material grade.
- Surface treatment, sample quantity and repeat-order needs.
01 / REVIEW
Resolve the requirements.
Share your drawing and the features that affect function. Agree material, process scope, inspection and commercial conditions.
02 / SAMPLE
Define what approval means.
Agree the sample quantity and measurements or assembly checks required for acceptance. Record the drawing revision used.
03 / REPEAT
Control the next order.
Retain the approved specification and packaging requirements. Review design, material or finish changes before repeat production.
