Aluminum flange seat
An aluminum flange seat with a central bore and a patterned mounting face. Define the face datum and the location of holes and slots from that reference.
Explore component
Studio image: AI-assisted presentation. Select an original photograph to review the source.
Flanges & covers / cs-product-025

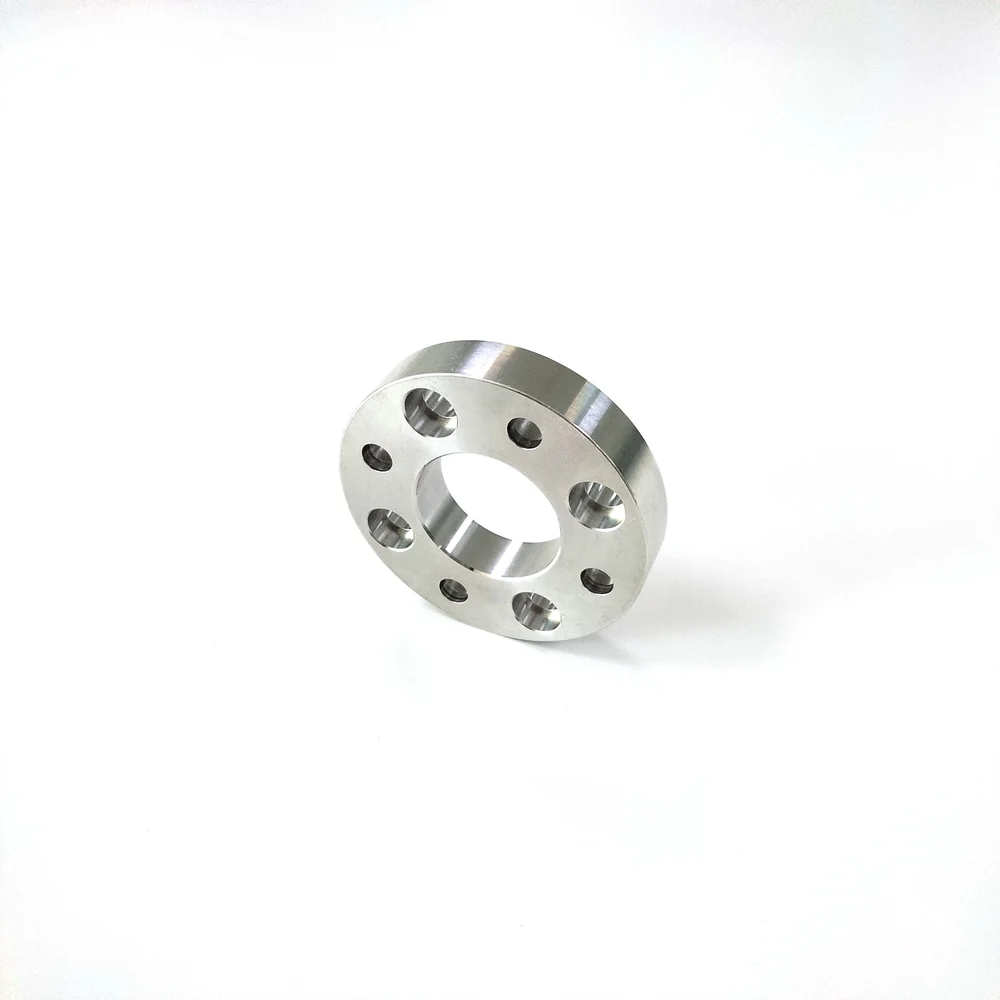

Stainless steel flange plate
A stainless steel flange plate with a central bore and repeated mounting holes. Start with the bolt pattern, mating diameter and mounting-face requirements.
- Material shown
- Stainless steel
- Process reference
- Drawing-specific process review
- Manufacturing model
- Custom, made to drawing
- Dimensions & tolerances
- Defined by your approved drawing
Key geometry & review priorities
- Central through-bore
- Circular mounting-hole pattern
- Stepped annular face
Reference example, not a stocked standard part. Quote and feasibility require your specification.
Download review brief
THE PRODUCT CASE / YOUR BUYING DECISION
Does the bore or bolt pattern establish location, and how is the plate oriented during installation?
A flange plate connects a central interface to a repeated mounting pattern. This stainless steel flange-plate reference helps machine builders define the locating bore, stepped face and hole orientation before agreeing a quotation and a dimensional sample report.
Explore this product caseBEFORE YOU RELEASE THE DRAWING
A practical next step.
Use these guides to define the records and checks your component needs.
THE FEATURES TO LOOK AT
A closer look
at this component.

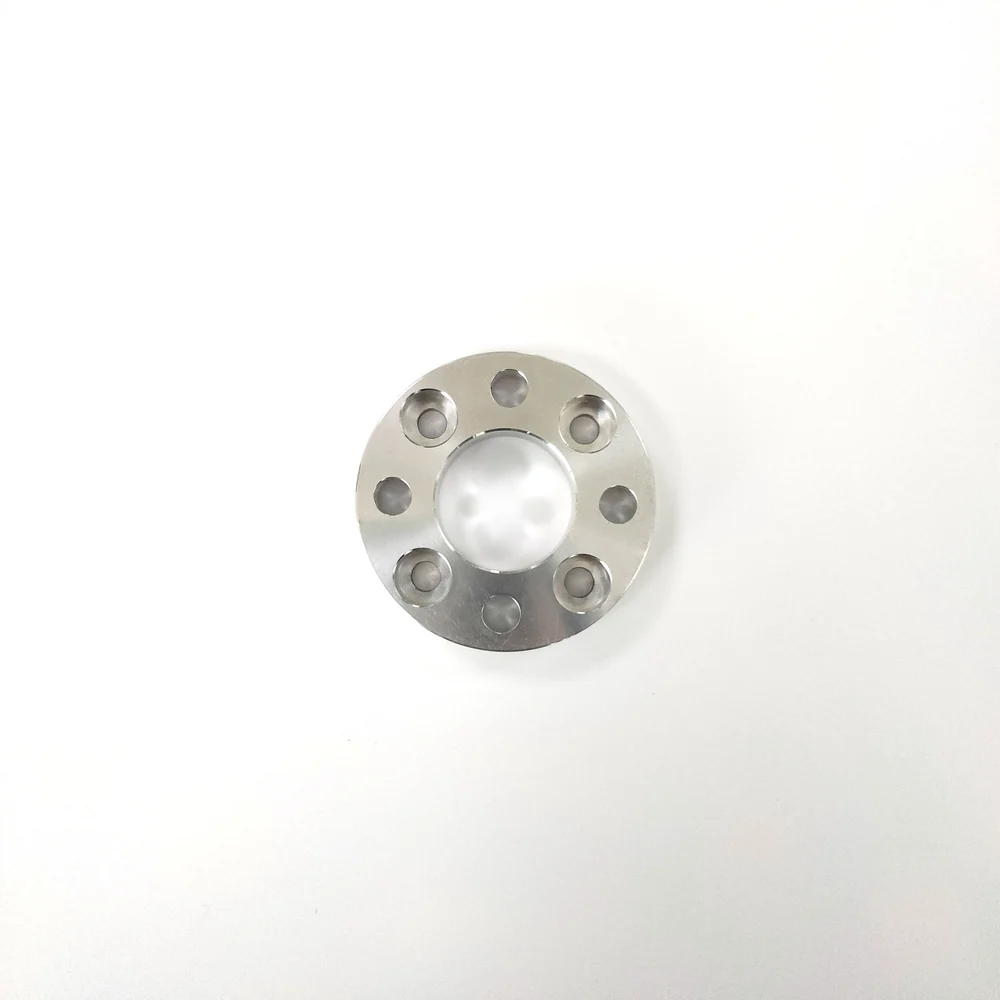

A stainless steel flange plate with a central bore and repeated mounting holes. Start with the bolt pattern, mating diameter and mounting-face requirements.
Original Chengshuo product reference01
Central through-bore
02
Circular mounting-hole pattern
03
Stepped annular face
DEFINE YOUR PART
What needs to
be in your drawing?
Reference images explain geometry. Your approved drawing and agreed inspection records establish dimensions, material and acceptance requirements.
- Mounting face and hole-pattern datums
- Sealing, flatness and surface requirements
- Fastener clearance and assembly access
- Drawing number, revision, units and material grade.
- Surface treatment, sample quantity and repeat-order needs.
01 / REVIEW
Resolve the requirements.
Share your drawing and the features that affect function. Agree material, process scope, inspection and commercial conditions.
02 / SAMPLE
Define what approval means.
Agree the sample quantity and measurements or assembly checks required for acceptance. Record the drawing revision used.
03 / REPEAT
Control the next order.
Retain the approved specification and packaging requirements. Review design, material or finish changes before repeat production.
Questions before
your drawing review.
Can you change the dimensions or material?
This is a custom component example. Submit your required geometry and exact material grade for feasibility review; the reference image is not a fixed catalogue specification.
What quantity and lead time should I plan for?
Include both sample and production quantities plus your target date. The quotation confirms the agreed scope, price and schedule after review.
Can I send confidential drawings?
If your project needs an NDA, contact Alen before uploading confidential files. Website submission itself does not create a confidentiality agreement.
