Bushings & rings / cs-product-023

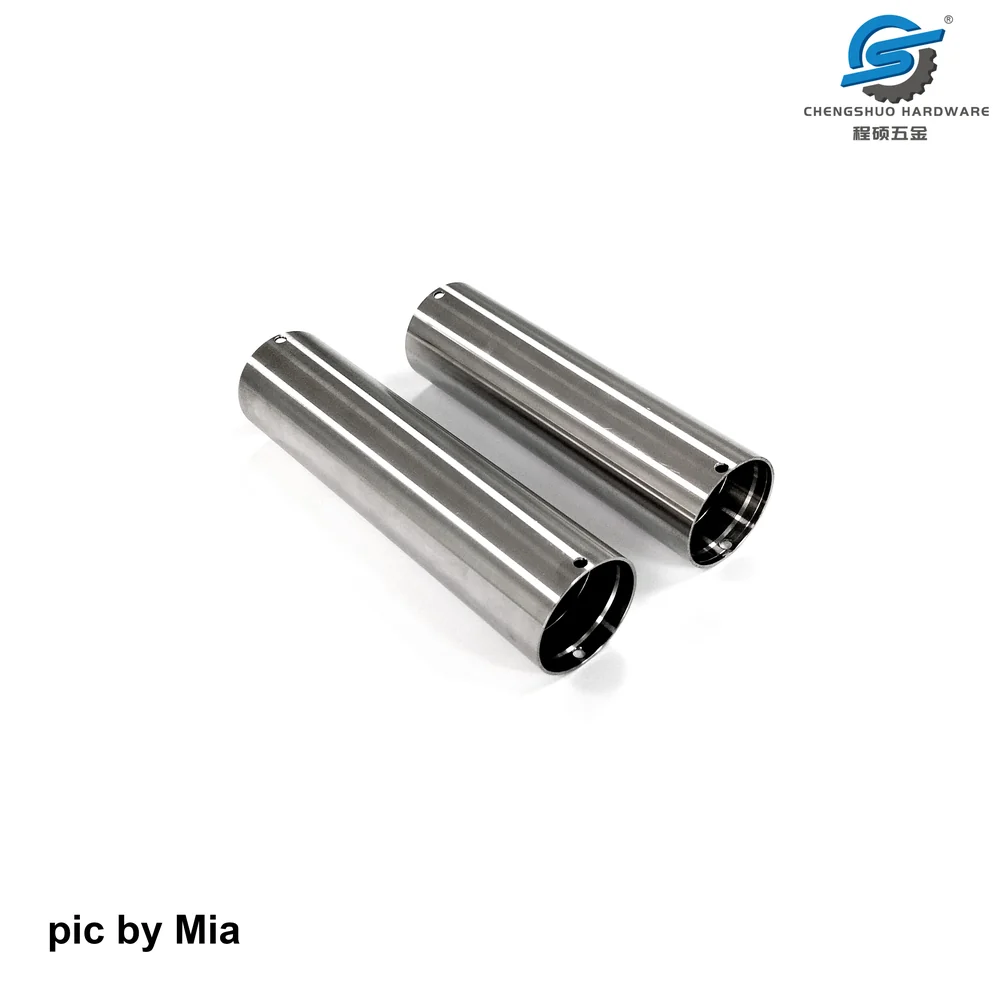

Stainless steel tube components
Stainless steel tube forms with open bores. Define the wall thickness, length and hole placement to review a similar component.
- Material shown
- Stainless steel
- Process reference
- Drawing-specific process review
- Manufacturing model
- Custom, made to drawing
- Dimensions & tolerances
- Defined by your approved drawing
Key geometry & review priorities
- Open tubular bores
- Cylindrical outer profiles
- Long and short tube forms
Reference example, not a stocked standard part. Quote and feasibility require your specification.
Download review brief
THE PRODUCT CASE / YOUR BUYING DECISION
Which tube dimensions and openings control the assembly, and under what condition should they be measured?
A tubular component needs a clear relationship between its bore, wall and secondary openings. Use this stainless steel tube series to define length, end condition and any perforation pattern, then agree how the finished part will be supported and inspected.
Explore this product caseBEFORE YOU RELEASE THE DRAWING
A practical next step.
Use these guides to define the records and checks your component needs.
Thin-Wall Tube Machining: Control the Clamping and Measurement State
Review support, wall changes and free-state inspection so a thin-walled sleeve is not accepted only while a fixture holds it in shape.
Sensor Sleeves: Review the Bore, Wall and Assembly FitPrepare a sensor-sleeve drawing around the inserted component, usable bore, wall sections and mounting interface before requesting manufacture.
THE FEATURES TO LOOK AT
A closer look
at this component.
Stainless steel tube forms with open bores. Define the wall thickness, length and hole placement to review a similar component.
Original Chengshuo product reference01
Open tubular bores
02
Cylindrical outer profiles
03
Long and short tube forms
DEFINE YOUR PART
What needs to
be in your drawing?
Reference images explain geometry. Your approved drawing and agreed inspection records establish dimensions, material and acceptance requirements.
- Bore, outside diameter and fit
- Wall section and distortion-sensitive areas
- Finish, edge condition and inspection access
- Drawing number, revision, units and material grade.
- Surface treatment, sample quantity and repeat-order needs.
01 / REVIEW
Resolve the requirements.
Share your drawing and the features that affect function. Agree material, process scope, inspection and commercial conditions.
02 / SAMPLE
Define what approval means.
Agree the sample quantity and measurements or assembly checks required for acceptance. Record the drawing revision used.
03 / REPEAT
Control the next order.
Retain the approved specification and packaging requirements. Review design, material or finish changes before repeat production.
Questions before
your drawing review.
Can you change the dimensions or material?
This is a custom component example. Submit your required geometry and exact material grade for feasibility review; the reference image is not a fixed catalogue specification.
What quantity and lead time should I plan for?
Include both sample and production quantities plus your target date. The quotation confirms the agreed scope, price and schedule after review.
Can I send confidential drawings?
If your project needs an NDA, contact Alen before uploading confidential files. Website submission itself does not create a confidentiality agreement.
