Bushings & rings / cs-product-028
Shaft positioning collar
Compact collars with a central bore and radial fixing features. Define the shaft diameter, axial location and fastening method before specifying your version.
- Material shown
- Confirmed during drawing review
- Process reference
- CNC turning
- Manufacturing model
- Custom, made to drawing
- Dimensions & tolerances
- Defined by your approved drawing
Key geometry & review priorities
- Central through-bore
- Radial fixing-hole features
- Compact cylindrical ring form
Reference example, not a stocked standard part. Quote and feasibility require your specification.
Download review brief
THE PRODUCT CASE / YOUR BUYING DECISION
How does the collar locate on the shaft, and which face establishes the axial stop?
A shaft collar establishes an axial position through its bore, face and fixing arrangement. This CNC-turned reference helps automation buyers define the shaft interface and radial fixing features before reviewing installation access, material and the required sample checks.
Explore this product caseBEFORE YOU RELEASE THE DRAWING
A practical next step.
Use these guides to define the records and checks your component needs.
Cross-Hole Clocking on Shafts: Define the Reference Before Drilling
A cross-hole can pass its diameter and axial checks yet face the wrong direction. Define clocking from the functional flat, slot or keyway.
Shaft Runout Inspection: Agree the Datum and Measurement SetupDistinguish circular and total runout, reproduce the drawing datum and record the setup before comparing shaft inspection results.
A Revision Checklist Before Reordering Machined PartsCompare the new order with the approved sample baseline, resolve changed requirements and record which revision each production lot must follow.
THE FEATURES TO LOOK AT
A closer look
at this component.
Compact collars with a central bore and radial fixing features. Define the shaft diameter, axial location and fastening method before specifying your version.

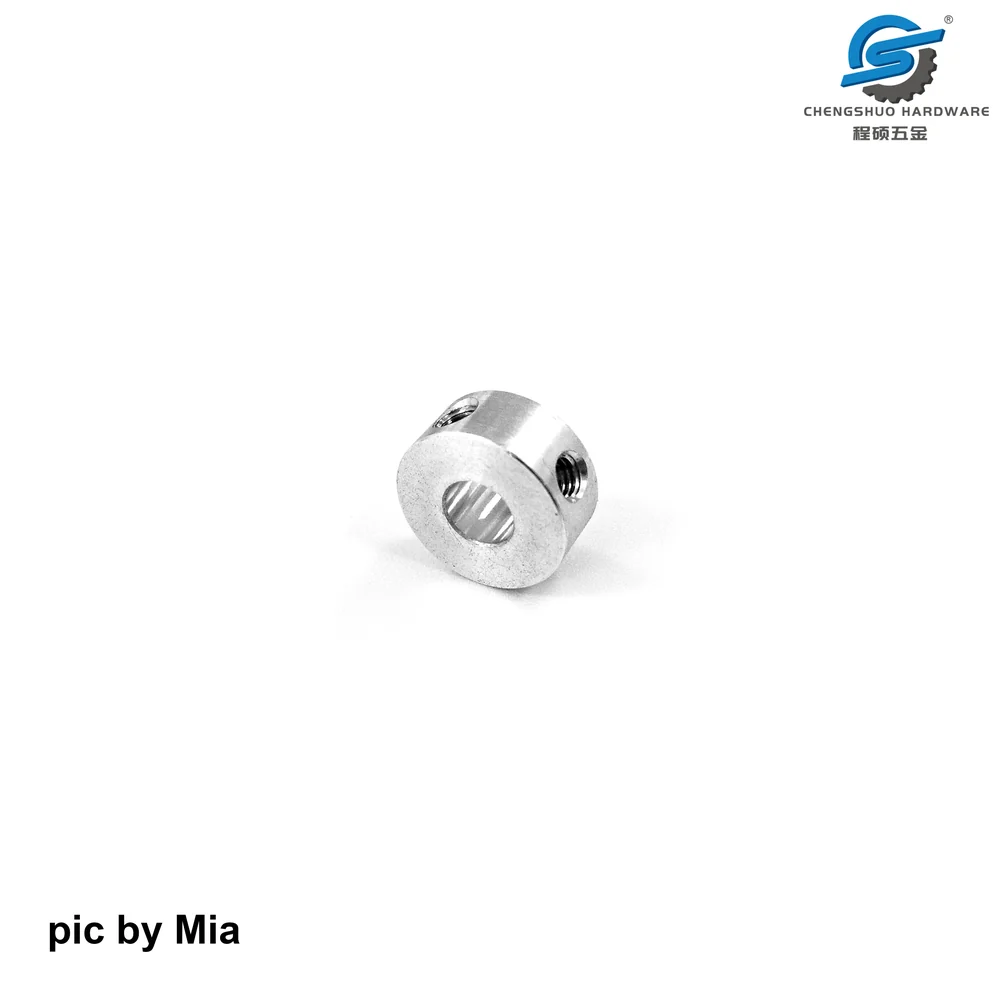

Original Chengshuo product reference01
Central through-bore
02
Radial fixing-hole features
03
Compact cylindrical ring form
DEFINE YOUR PART
What needs to
be in your drawing?
Reference images explain geometry. Your approved drawing and agreed inspection records establish dimensions, material and acceptance requirements.
- Bore, outside diameter and fit
- Wall section and distortion-sensitive areas
- Finish, edge condition and inspection access
- Drawing number, revision, units and material grade.
- Surface treatment, sample quantity and repeat-order needs.
01 / REVIEW
Resolve the requirements.
Share your drawing and the features that affect function. Agree material, process scope, inspection and commercial conditions.
02 / SAMPLE
Define what approval means.
Agree the sample quantity and measurements or assembly checks required for acceptance. Record the drawing revision used.
03 / REPEAT
Control the next order.
Retain the approved specification and packaging requirements. Review design, material or finish changes before repeat production.
Questions before
your drawing review.
Can you change the dimensions or material?
This is a custom component example. Submit your required geometry and exact material grade for feasibility review; the reference image is not a fixed catalogue specification.
What quantity and lead time should I plan for?
Include both sample and production quantities plus your target date. The quotation confirms the agreed scope, price and schedule after review.
Can I send confidential drawings?
If your project needs an NDA, contact Alen before uploading confidential files. Website submission itself does not create a confidentiality agreement.
