Watch case frame

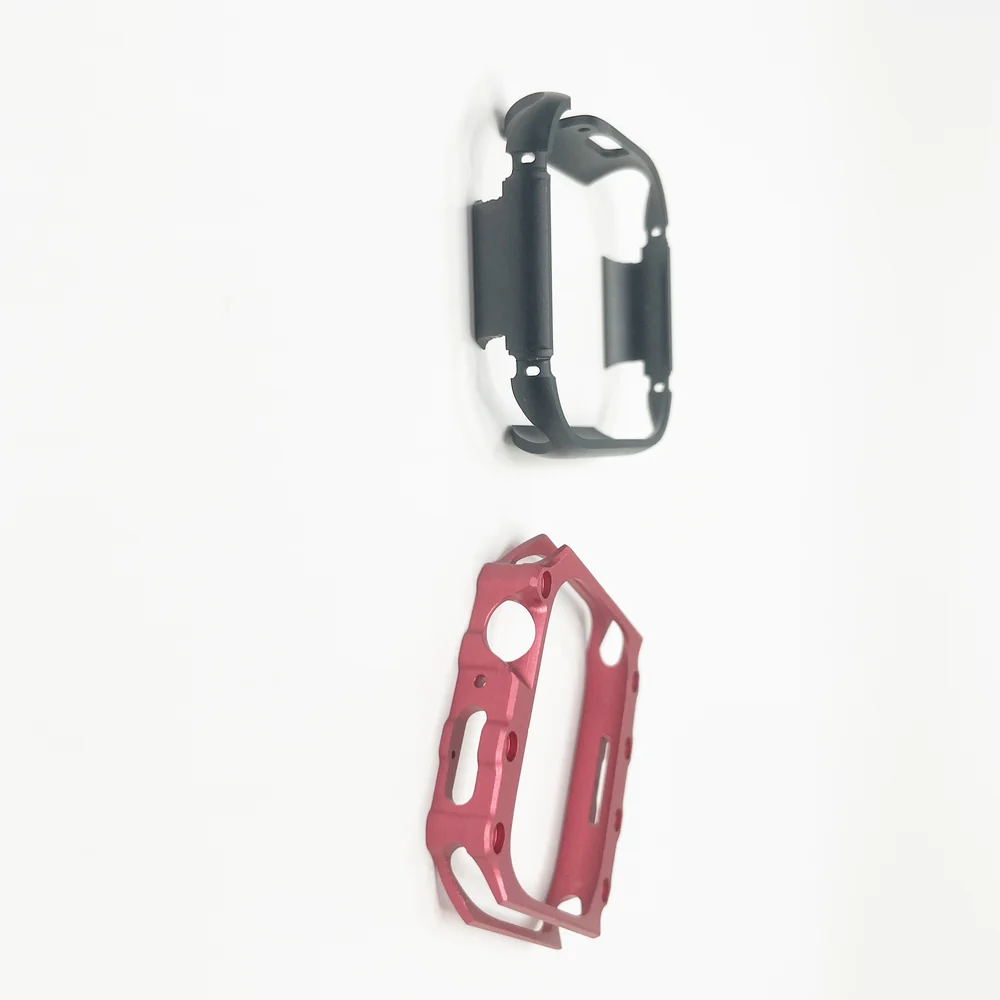

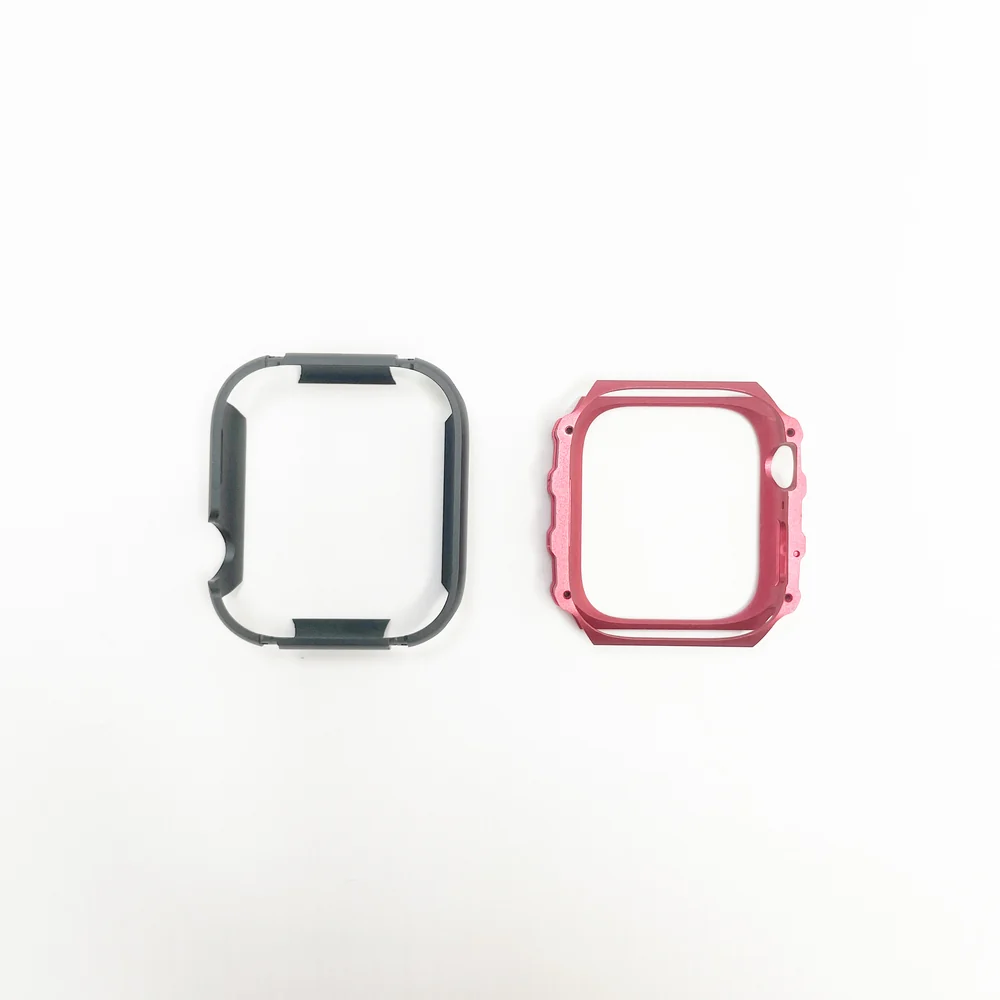

A watch-case frame with a shaped outer profile and open interior. Review the assembly opening, internal recesses and cosmetic surfaces together.
- Material shown
- Confirmed during drawing review
- Process reference
- CNC milling
- Manufacturing model
- Custom, made to drawing
- Dimensions & tolerances
- Defined by your approved drawing
Key geometry & review priorities
- Open rectangular frame
- Shaped outer corners
- Recessed internal features
Reference example, not a stocked standard part. Quote and feasibility require your specification.
Download review brief
THE PRODUCT CASE / YOUR BUYING DECISION
Which internal features locate the assembly, and where must the exterior finish remain visually consistent?
A compact frame brings small internal details close to surfaces the user sees. Use this CNC-milled watch-case reference to define assembly seats, corner geometry and cosmetic zones while selecting a material and finish appropriate to your own design.
Explore this product caseTHE FEATURES TO LOOK AT
A closer look
at this component.
A watch-case frame with a shaped outer profile and open interior. Review the assembly opening, internal recesses and cosmetic surfaces together.
Original Chengshuo product reference01
Open rectangular frame
02
Shaped outer corners
03
Recessed internal features
DEFINE YOUR PART
What needs to
be in your drawing?
Reference images explain geometry. Your approved drawing and agreed inspection records establish dimensions, material and acceptance requirements.
- Internal geometry and tool access
- Mounting features and connector interfaces
- Cosmetic surfaces and assembly clearances
- Drawing number, revision, units and material grade.
- Surface treatment, sample quantity and repeat-order needs.
01 / REVIEW
Resolve the requirements.
Share your drawing and the features that affect function. Agree material, process scope, inspection and commercial conditions.
02 / SAMPLE
Define what approval means.
Agree the sample quantity and measurements or assembly checks required for acceptance. Record the drawing revision used.
03 / REPEAT
Control the next order.
Retain the approved specification and packaging requirements. Review design, material or finish changes before repeat production.
Questions before
your drawing review.
Can you change the dimensions or material?
This is a custom component example. Submit your required geometry and exact material grade for feasibility review; the reference image is not a fixed catalogue specification.
What quantity and lead time should I plan for?
Include both sample and production quantities plus your target date. The quotation confirms the agreed scope, price and schedule after review.
Can I send confidential drawings?
If your project needs an NDA, contact Alen before uploading confidential files. Website submission itself does not create a confidentiality agreement.
